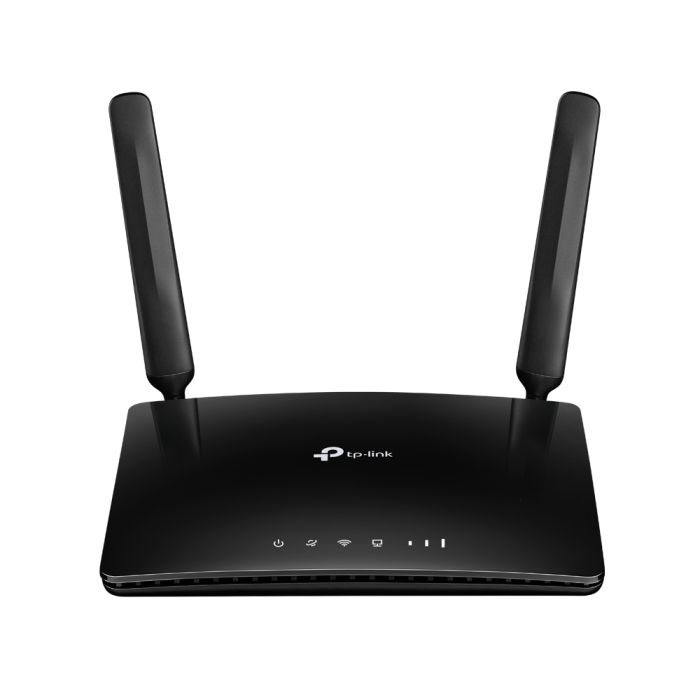

TPLINK TL-ARCHER MR200 AC750 WIRELESS DUAL BAND 4G LTE ROUTER

Interface

3× 10/100Mbps LAN Ports, 1× 10/100Mbps LAN/WAN Port, 1× Micro SIM Card Slot

Button

WPS/RESET Button, Wi-Fi ON/OFF Button

External Power Supply

12V/1A

Dimensions ( W x D x H )

6.85 × 4.9 × 1.32 in (174 × 124.5 × 33.5 mm)

Antenna

2 Detachable External 4G LTE Antennas

Wireless Standards

IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz

Frequency

2.4 GHz and 5 GHz

Signal Rate

300 Mbps at 2.4 GHz, 433 Mbps at 5 GHz

Reception Sensitivity

5 GHz:
11a 54M: -78 dBm
11ac VHT20 MCS0: -92 dBm 11ac VHT20 MCS8: -72 dBm
11ac VHT40 MCS0: -90 dBm 11ac VHT40 MCS9: -67 dBm
11ac VHT80 MCS0: -87 dBm 11ac VHT80 MCS9: -64 dBm
2.4 GHz:
11g 54M: -74 dBm
11n HT20 MCS0: -91 dBm 11n HT20 MCS7: -72 dBm
11n HT40 MCS0: -88 dBm 11n HT40 MCS7: -69 dBm

Transmit Power

< 20 dBm (2.4 GHz), < 23 dBm (5 GHz)

Wireless Functions

Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics

WAN Failover

Yes

Wireless Security

64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Network Type

4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800 MHz)
TDD-LTE B38/B40/B41 (2600/2300/2500 MHz)
3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900 MHz)

Quality of Service

Prioritizes network traffic by device or application

Operating Modes

3G/4G Router, Wireless Router

WAN Type

Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Management

Access Control, Local Management, Remote Management, reboot schedule

DHCP

Server, DHCP Client List, Address Reservation

Port Forwarding

Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS

DynDns, NO-IP, TP-Link DDNS

Access Control

-

Firewall Security

DoS, SPI Firewall, IP and MAC Address Binding

Protocols

Supports IPv4 and IPv6

Guest Network

2.4GHz guest network x 1, 5GHz guest network x 1

VPN Server

PPTP VPN, OpenVPN

Certification

CE, RoHS

Package Contents

AC750 Wireless Dual Band 4G LTE Router Archer MR200
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide

System Requirements

Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Micro SIM Card

Environment

Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~60? (-40? ~140?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
