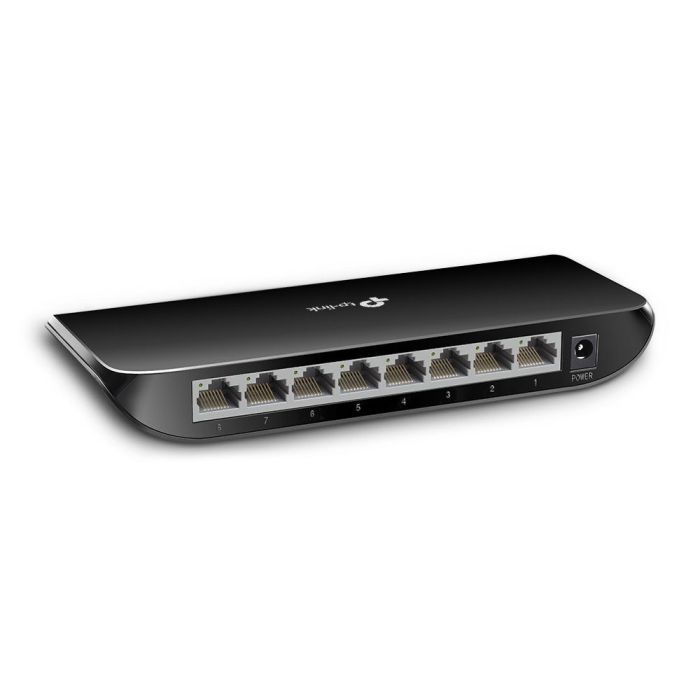

TPLINK TL-SG1008D 8-PORT GIGABIT SWITCH PLASTIC CASE

Standards and Protocols

IEEE 802.3i/802.3u/ 802.3ab/802.3x

Interface

8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Fan Quantity

Fanless

Physical Security Lock

No

External Power Supply

External Power Adapter (Output: 5VDC / 0.6A)

Jumbo Frame

15 KB

Switching Capacity

16 Gbps

Dimensions ( W x D x H )

7.1 * 3.5 * 1.0 in. (180 * 90 * 25.5 mm)

Max Power Consumption

4.63W(220V/50Hz)

Max Heat Dissipation

15.80BTU/h

Transfer Method

Store and Forward

MAC Address Table

4K

Advanced Functions

Green Technology, saving power up to 80%
802.3X Flow Control, Back Pressure
