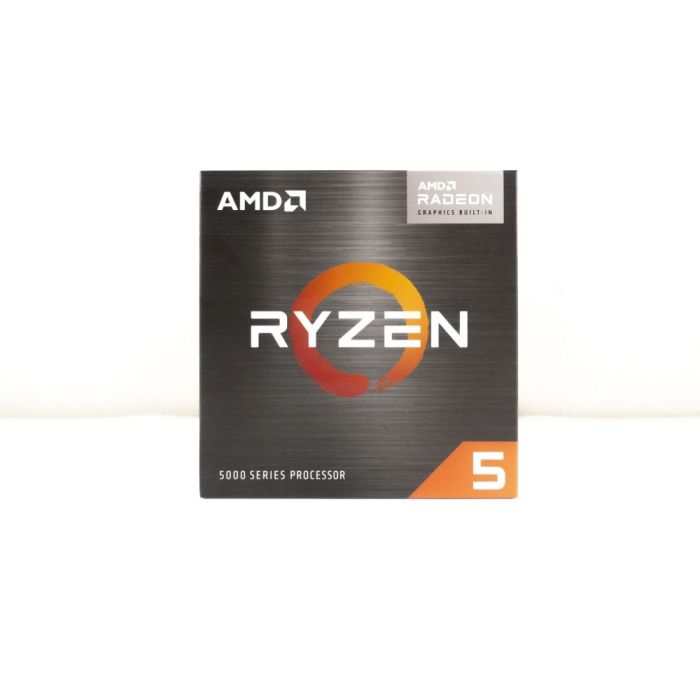

AMD RYZEN 5 5600G PROCESSOR
Graphics built-in
The AMD Ryzen™ 5 5600G desktop processor gives you the world’s fastest graphics in a desktop processor1. Play top games in smooth 1080p with 6 cores, 12 threads, boost clocks of up to 4.4GHz2, 19MB of total cache, and 7 Graphics Compute Units at up to 1.9GHz3.
The newest technologies
All Ryzen™ 5000 Series processors come with the full suite of Ryzen™ technologies designed to elevate your PC’s processing power including Precision Boost 2 and Precision Boost Overdrive4.
Build with confidence
Not only are these processors drop-in ready on AMD 500 and select 400* series motherboards with a simple BIOS update, you can easily tweak and tune your processor with Ryzen™ Master and AMD StoreMI.
*Select motherboards may require BIOS update based on date of manufacture or purchase.
AMD Wraith Stealth Cooler included
The AMD Wraith Stealth cooler is cool, quiet, and low profile.
General Specifications | |
Platform | Boxed Processor |
Product Family | AMD Ryzen™ Processors |
Product Line | AMD Ryzen™ 5 5000 G-Series Desktop Processors with Radeon™ Graphics |
# of CPU Cores | 6 |
# of Threads | 12 |
Max. Boost Clock | Up to 4.4GHz |
Base Clock | 3.9GHz |
Total L2 Cache | 3MB |
Total L3 Cache | 16MB |
AMD Configurable TDP (cTDP) | 45-65W |
Default TDP | 65W |
Processor Technology for CPU Cores | TSMC 7nm FinFET |
Unlocked for Overclocking |
Yes |
CPU Socket | AM4 |
Thermal Solution (PIB) | Wraith Stealth |
Max. Operating Temperature (Tjmax) | 95°C |
Launch Date | 4/13/2021 |
*OS Support |
Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. |
Connectivity | |
PCI Express® Version
|
PCIe® 3.0 |
System Memory Type | DDR4 |
Memory Channels | 2 |
System Memory Specification | Up to 3200MHz |
Product IDs | |
Product ID Boxed | 100-100000252BOX |
Product ID Tray | 100-000000252 |
Product ID MPK |
100-100000252MPK |
Graphics Capabilities | |
Graphics Model | Radeon™ Graphics |
Graphics Core Count | 7 |
Graphics Frequency | 1900 MHz |
