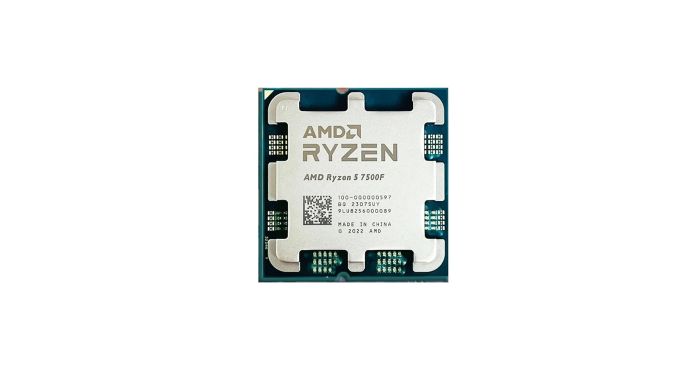

AMD RYZEN 5 7500F TRAY PROCESSOR

?? Cache Infrastructure

• L1 Cache: 384 KB total

• L2 Cache: 6 MB total (1 MB per core)

• L3 Cache: 32 MB shared (A massive pool of cache that heavily boosts 1080p gaming frame rates)

• Total Combined Cache: 38 MB

? Power & Thermals

• Default Thermal Design Power (TDP): 65 W

• Max Operating Temperature ($T_{jMax}$): 95°C

• Thermal Solution: Not Included (Requires an aftermarket tower air cooler or a liquid AIO cooler)

?? Platform & Memory Connectivity

• Motherboard Socket: Socket AM5

• Compatible Chipsets: A620, B650, B650E, X670, X670E, B840, B850, X870, X870E

• System Memory Type: DDR5

• Officially Supported Memory Speed: Up to 5200 MT/s (Sweet spot for stability, fully supports dual-channel configuration and AMD EXPO™ profiles)

• PCI Express Version: PCIe® 5.0

• Total Native PCIe Lanes: 28 Lanes (24 Usable from the CPU for high-speed NVMe drives and GPUs)

?? Graphics Requirements

• Integrated Graphics: None (Discrete graphics card is REQUIRED to get a display output from your PC)

??? Advanced Technologies

• AMD EXPO™ Memory Overclocking Technology

• Precision Boost Overdrive (PBO) & Curve Optimizer Support

• Hardware Virtualization & Multi-threading (SMT)

• Native AVX-512 instruction set support for modern computing pipelines
