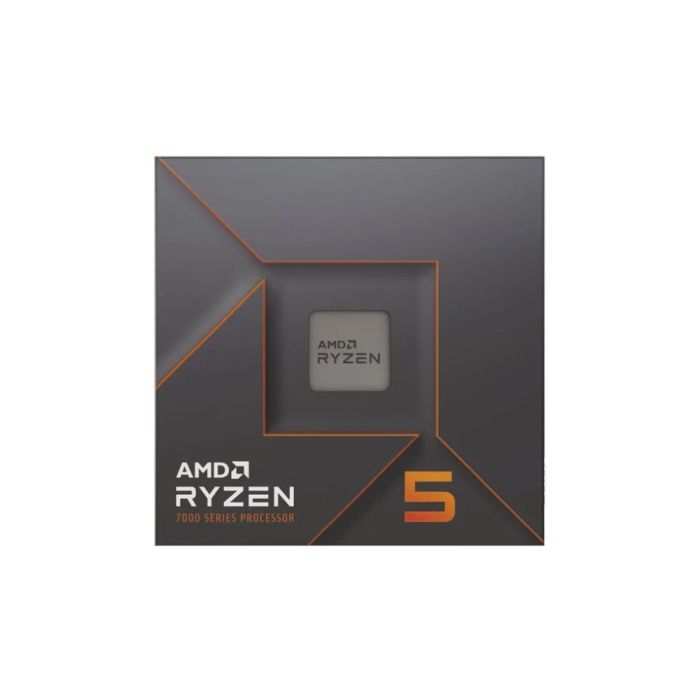

AMD RYZEN 5 7600X PROCESSOR
AMD Ryzen™ Processors
Game-changing performance with up to 16 cores, 32 threads, boost clocks of up to 4.9GHz, and up to 72MB of cache.2
Pure Gaming Performance
Get the 6-core gaming processor built for intense gaming action.
Product Family | AMD Ryzen™ Processors |
Product Line | AMD Ryzen™ 5 Desktop Processors |
AMD PRO Technologies | No |
Consumer Use | Yes |
Regional Availability | Global |
Former Codename | ""Raphael AM5"" |
Architecture | ""Zen 4"" |
# of CPU Cores | 6 |
Multithreading (SMT) | Yes |
# of Threads | 12 |
Max. Boost Clock | Up to 5.3GHz |
Base Clock | 4.7GHz |
L1 Cache | 384KB |
L2 Cache | 6MB |
L3 Cache | 32MB |
Default TDP | 105W |
Processor Technology for CPU Cores | TSMC 5nm FinFET |
Processor Technology for I/O Die | TSMC 6nm FinFET |
CPU Compute Die (CCD) Size | 71mm² |
I/O Die (IOD) Size | 122mm² |
Package Die Count | 2 |
Unlocked for Overclocking | Yes |
AMD EXPO™ Memory Overclocking Technology | Yes |
Precision Boost Overdrive | Yes |
Curve Optimizer Voltage Offsets | Yes |
AMD Ryzen™ Master Support | Yes |
CPU Socket | AM5 |
Supporting Chipsets | X670E B650E B650 |
Os Support | Windows 11 - 64-Bit Edition Windows 10 - 64-Bit Edition RHEL x86 64-Bit Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer. |
