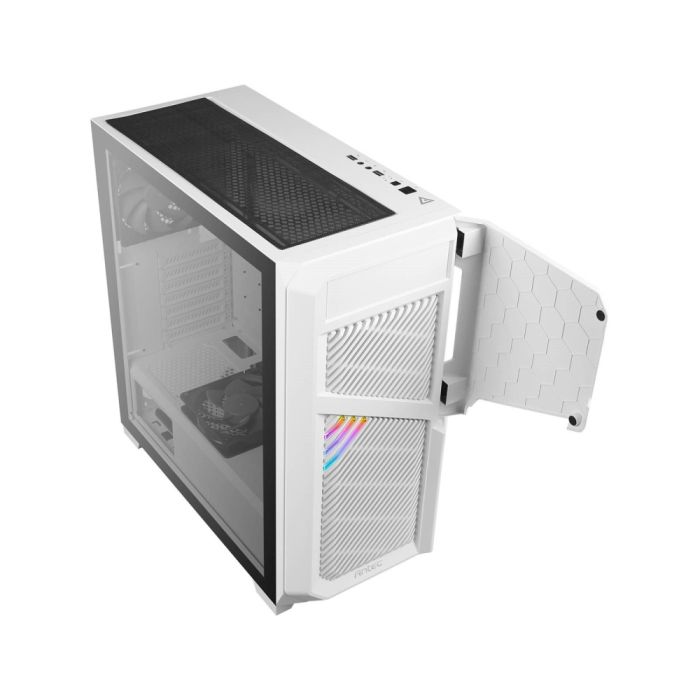

ANTEC DARK SERIES DP502 WHITE FLUX
- F-LUX Platform :Advanced case structure for excellent airflow + 5 x 120 mm fans included
- Provide mass airflow to your components with room for up to 9 x 120 mm fans
- Electroplating-processed LED on the top left-hand side presents a Sci-Fi vibration.
- Ready for radiator up to 360 mm in front, 360 mm on top & 120 mm in rear
- With room for 2.5" SSDs: 3 & 3.5" HDDs / 2.5" SSDs (convertible): 3 / 2
- With the support for 5.25" ODD x 1
- Dust plugs for I/P Ports are included
- Plenty of space for clean cable management
Case Specification | |
Dimensions | 463 x 220 x 486 mm (DWH) |
Form Factor | Mid Tower |
Materials | Steel + Plastic |
Mainboard Support | ATX, Micro-ATX, ITX |
Front Access & Controls | Power, LED Control Button, 2 x USB3.0, HD-AUDIO |
Side Panel | 4mm Tempered Glass Side Panel |
Expansion & Drive Bays | |
Expansion Slots | 7 |
5.25" | 1 |
3.5"/2.5" (convertible) | 3/2 |
2.5" | 3 |
FAN | |
Front | 3 x 120 mm / 2 x 140 mm |
Top | 3 x 120mm / 2 x 140mm (w/o ODD and w/o ODD bracket) 2 x 120mm / 2 x 140mm (w/o ODD but with ODD bracket) 2 x 120mm / 1 x 140mm(When ODD is installed) |
Power Supply Shroud | 2 x 120mm |
Rear | 1 x 120mm |
Pre-installed Fans | 3 x 120mm ARGB fans in front 1 x 120mm fan (Reverse Fan) on PSU shroud & 1 x 120mm fan in rear |
Radiator Support | |
Front | 120/240/280/360mm (≤ 55mm thickness when fans are installed outside of front panel) (≤ 30mm thickness when fans are installed inside of front panel) [Max Radiator Length ≤ 405mm] |
Top | 240/280/360mm (w/o ODD and w/o ODD bracket) 240/280mm (w/o ODD but with ODD bracket) 120mm(When ODD is installed) [Max Radiator Length ≤ 405mm] |
Rear | ≤ 120mm |
Clearance | |
Max GPU Length | ≤ 405mm |
Max CPU Cooler Height | ≤ 175mm |
Max PSU Length | ≤ 205mm |
Miscellaneous | |
Dust Filters | Top / Bottom/ Right Hand Side |
Net Weight | 7.55 kgs |
Gross Weight | 8.7 kgs |
Warranty | 2 years |
UPC# | 0-761345-80051-8 |
