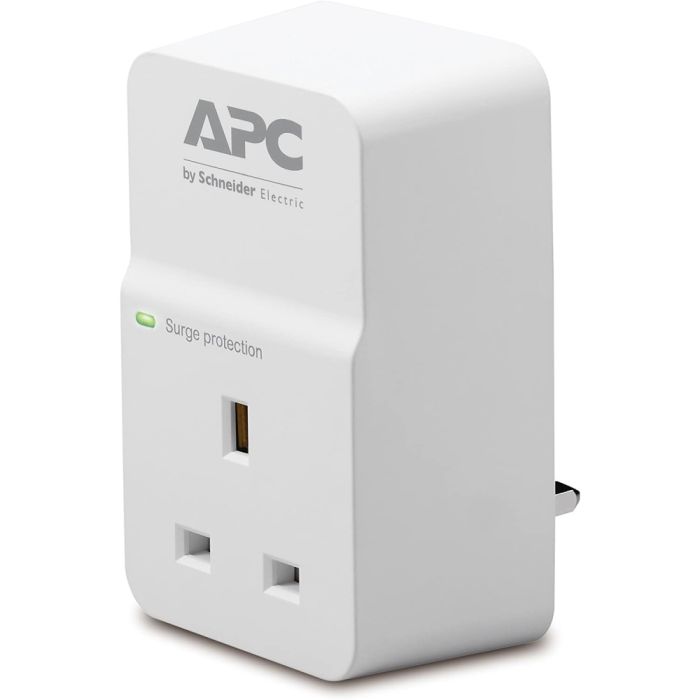

APC 1-SOCKET SURGE PROTECTOR 230V (PM1W-UK)

warranty (months): 12
BND 29.00

Technical Specifications



Output

Number of Outlets

1.0

Receptacle Style

BS 1363 United Kingdom



Input

Input frequency

50 Hz +/- 5 Hz



Surge Protection and Filtering

Surge energy rating

918Joules

ts_nm_surge_response

1ns

Peak Current Common Mode

24kAmps

Peak Current Normal Mode

12kAmps



Physical

Maximum Height

100MM, 10.0CM

Maximum Width

63MM, 6.3CM

Maximum Depth

42MM, 4.2CM

Net Weight

0.13KG

Shipping weight

0.2KG

Shipping Height

106MM, 10.6CM

Shipping Width

70MM, 7.0CM

Shipping Depth

88MM, 8.8CM

Color

White

Master Carton Dimensions (Length x Width x Height)

133 x 286 x 305MM

Master Carton Units

13.0

Master Carton Weight

2.66

Units per Pallet

1008.0

SCC Codes

10731304313615



Environmental

Operating Temperature

0 - 40 °C

Operating Relative Humidity

0 - 95 %

Operating Elevation

0 - 3048meters

Storage Temperature

-5 - 40 °C

Storage Relative Humidity

0 - 95 (Non-condensing) %

Storage Elevation

0 - 4572meters



Conformance

Approvals

CE

Equipment protection policy

Lifetime : 50000 euros

Standard warranty

Lifetime (European Union countries only)

Sustainable Offer Status

RoHS

Compliant
