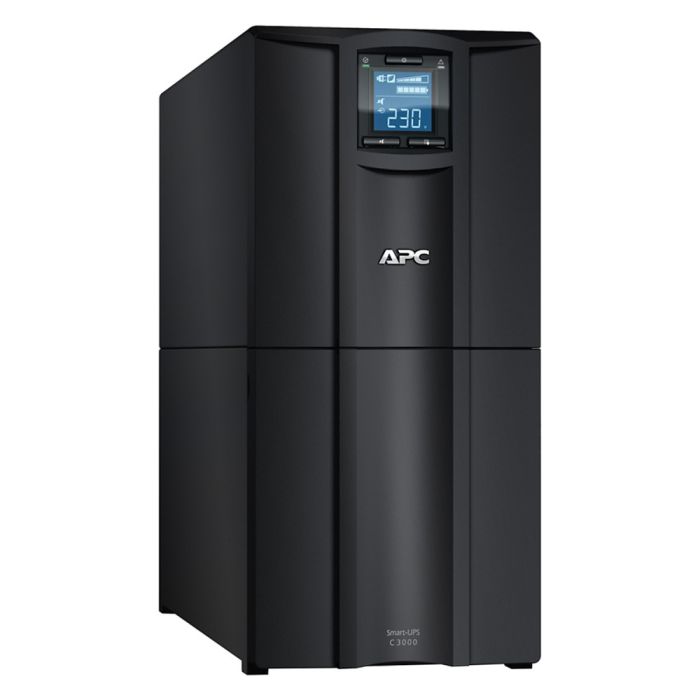

APC SMART-UPS C 3000VA LCD 230V TOWER (SMC3000I)

Technical Specifications

Output

Max Configurable Power (Watts)

2.1kWatts / 3.0kVA

Output Voltage Distortion

Less than 5 % at full load

Output Frequency (sync to mains)

50 Hz Sync to mains

Topology

Line interactive

Waveform type

Sine wave

Input

Input frequency

47 - 63 Hz

Input voltage range for main operations

170 - 300 Adjustable, 180 - 287V

Other Input Voltages

220, 240

Baterries & Runtime

Battery type

Lead-acid battery

Typical recharge time

3hour(s)

Replacement Battery

APCRBC150

Expected Battery Life (years)

3 - 5

RBC Quantity

1

Battery Charge Power (Watts)

183 Watts

Communications & Management

Interface Port(s)

USB

Control panel

Multifunction LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : configurable delays

Surge Protection and Filtering

Surge energy rating

300Joules

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

435MM, 43.5CM

Maximum Width

197MM, 19.7CM

Maximum Depth

544MM, 54.4CM

Net Weight

43.0KG

Shipping weight

51.0KG

Shipping Height

762MM, 76.2CM

Shipping Width

381MM, 38.1CM

Shipping Depth

699MM, 69.9CM

Color

Black

Units per Pallet

24.0

Environmental

Operating Temperature

0 - 40 °C

Operating Relative Humidity

0 - 95 %

Operating Elevation

0 - 3048meters

Storage Temperature

-15 - 45 °C

Storage Relative Humidity

0 - 95 %

Storage Elevation

0 - 15240meters

Audible noise at 1 meter from surface of unit

45.0dBA

Online thermal dissipation

135.0BTU/hr

Conformance

Approvals

C-Tick, CE, EAC, GOST, SABS, VDE

Standard warranty

2 years repair or replace

Sustainable Offer Status

RoHS

Compliant
