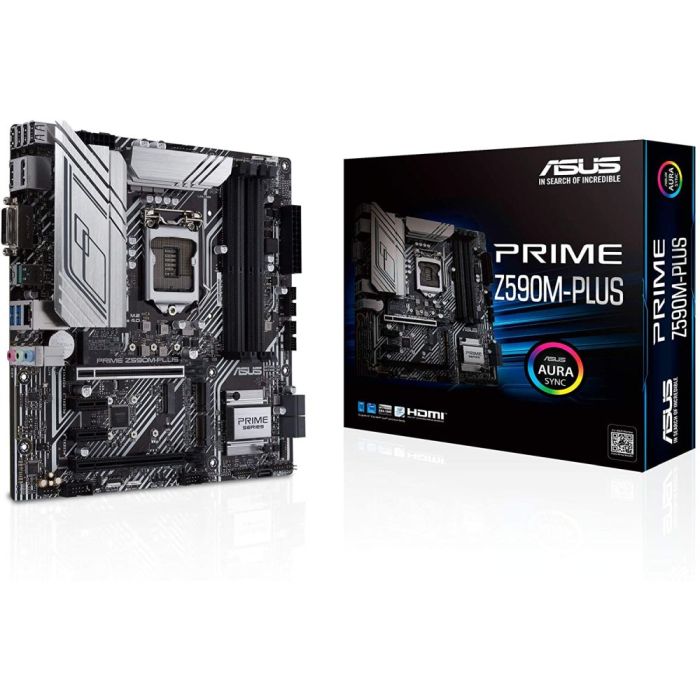

ASUS Z590M-PLUS PRIME MATX MOTHERBOARD

Get your build off on the right foot with the Prime Z590-Plus LGA 1200 Micro-ATX Motherboard from ASUS. Embracing both style and utility, the Prime Z590-PLUS allows you to take advantage of resource-demanding components while offering a clean look suitable for any builder.

BND269.00

Be the first to review this product

Available in Stores

Features

Robust Power Design-The Prime Z590-PLUS uses robust 10+1 Dromos power stages to stabilize system efficiency. Equipped with an 8-pin ProCool connector, the board passes 12-volts of power directly to the CPU, ensuring electrical stability.
Onboard Audio-Immerse yourself deep within your media and games with premium onboard audio. Constructed with premium Japanese capacitors, the Prime Z590-PLUS separates analog and digital signal domains to reduce multi-lateral interference and ensure minimal crosstalk between audio paths, providing a clear audio experience.
Personalization-Designed with customization in mind, the already elegant Prime Z590-PLUS provides you with the ability to equip your rig with an array of RGB lighting and effects. The Addressable Gen 2 RGB headers and Armory Crate illumination system can mix and match colors and effects to your personal taste, giving you a unique aesthetic that stands out. AURA Sync unites interior lighting and external devices such as mice and keyboards, taking your lighting game to the next level.

Specifications

PRODUCT DESCRIPTION	ASUS PRIME Z590M-PLUS - motherboard - micro ATX - LGA1200 Socket - Z590
PRODUCT TYPE	Motherboard - micro ATX
CHIPSET TYPE	Intel Z590
PROCESSOR SOCKET	1 x LGA1200 Socket Compatible Processors (supports 11th and 10th Generation Intel Core / Pentium Gold / Celeron)
MAX RAM SIZE 128 GB
RAM SUPPORTED	4 DIMM SLOTS - DDR4, NON-ECC, UNBUFFERED
STORAGE PORTS	5 x SATA-600, 3 x M.2 USB / FireWire Ports 1 x USB-C Gen 2x2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (4 x USB 3.2 Gen 1 + 3 x USB 2.0 via headers)
AUDIO	HD Audio (8-channel)
