BOYA 2.4GHz ULTRA COMPACT WIRELESS MICROPHONE SYSTEM FOR 2 PERSON (BY-XM6-S2)

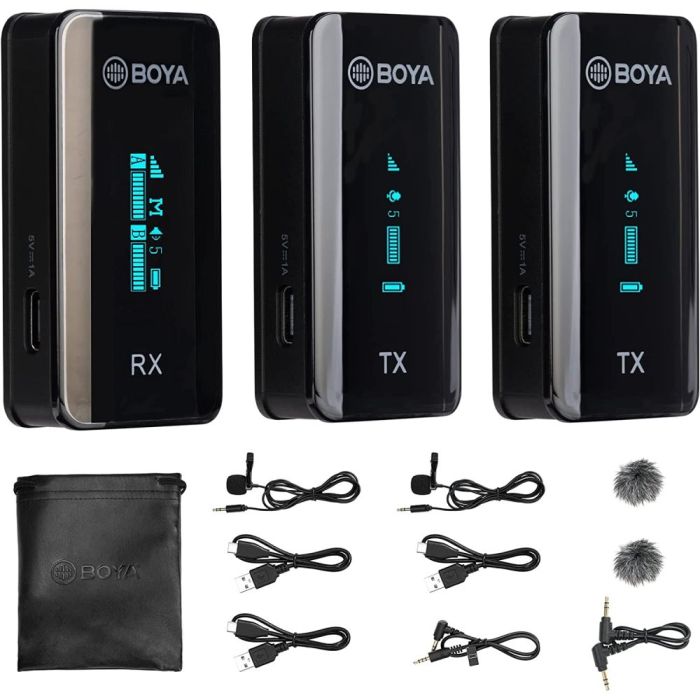

The BOYA BY-XM6-S2, a 2.4GHz dual-channel wireless microphone system, consists of two transmitters and one receiver. It’s a perfect sound capturing and delivering solution for two-person vlog, YouTube video, live streaming, interview, recording, etc.
Advanced Technology for Stable Signal Transmission
The BY-XM6 S2 series adopts advanced Adaptive Frequency Hopping (AFH) wireless signal transmission technology, which can make the BY-XM6 S2 avoid the disturbed hop frequency parts automatically to realize stable signal transmission in the range of up to 100m (328ft).
Professional Audio Capturing & Delivering
Featuring a high-quality capsule and signal processing circuit with a signal-to-noise over 84dB and a distortion rate less than 0.1%, the BY-XM6 S2 captures and delivers Hi-fi and low-noise audio.
Ultra-versatile & Ease-to-use Wireless Microphone Kit
With vivid and easy-to-read OLED display on transmitter and receiver, users can adjust the signal transmission precisely. And the transmitter is designed with a built-in omnidirectional microphone, so users can clip the transmitter on the collar to pick up sounds, while they can also plug a lavalier microphone into transmitter’s MIC IN input jack for sound capturing. Plus, this microphone kit is equipped with both 3.5mm TRS-TRS audio cable and 3.5mm TRS-TRRS audio cable. So it can work with your DSLR or mirrorless camera, smartphone and computer. When you record two sound sources simultaneously, BY-XM6 S2 will be your best choice.
TRANSMITTER
Transmission Type | 2.4GHz Digital Frequency |
Modulation | GFSK |
Operating Range (without obstacle) | Up to 328ft (100m) |
RF Output Power | <10mW |
Polar Pattern | Omnidirectional |
Frequency Response | 50Hz-18KHz |
Maximum SPL | Built-in Microphone: 120dB SPL |
Lavalier Microphone: 110dB SPL | |
Sensitivity | Built-in Microphone: -39dB |
Lavalier Microphone: -39dB | |
SNR | > 84dB |
Power Requirements | Built-in Li-ion Battery or USB-C DC 5V or Charging Contact |
Built-in Battery Life | Approx. 7 hours |
Antenna | PIFA Antenna |
Audio Inputs | 3.5mm TRS MIC/LINE IN Jack or Built-in Microphone |
Weight | Approx. 32g(1.13oz) |
Dimensions | 62.1×31.6×16.5mm |
Operating Temperature | –10°C to 50°C |
Storage Temperature | –20°C to +55° C |
RECEIVER
Transmission Type | 2.4GHz Digital Frequency |
Modulation | GFSK |
Operating Range (without obstacle) | Up to 328ft (100m) |
Audio Output Connector | 3.5mm Headphone Jack |
3.5mm TRS Output Jack | |
Audio Output Level | –60 dBV to -20dBV |
Power Requirements | Built-in Li-ion Battery or USB-C DC 5V or Charging Contact |
Built-in Battery Life | Approx. 6.5 hours |
Antenna | PIFA Antenna |
Weight | Approx. 32g(1.13oz) |
Dimensions | 62.1×31.6×16.5mm |
Operating Temperature | –10°C to 50°C |
Storage Temperature | –20°C to +55°C |
