SKU
CM-313
In stock
CM MASTERBOX NR200P SFF TG MITX CASING -WHITE

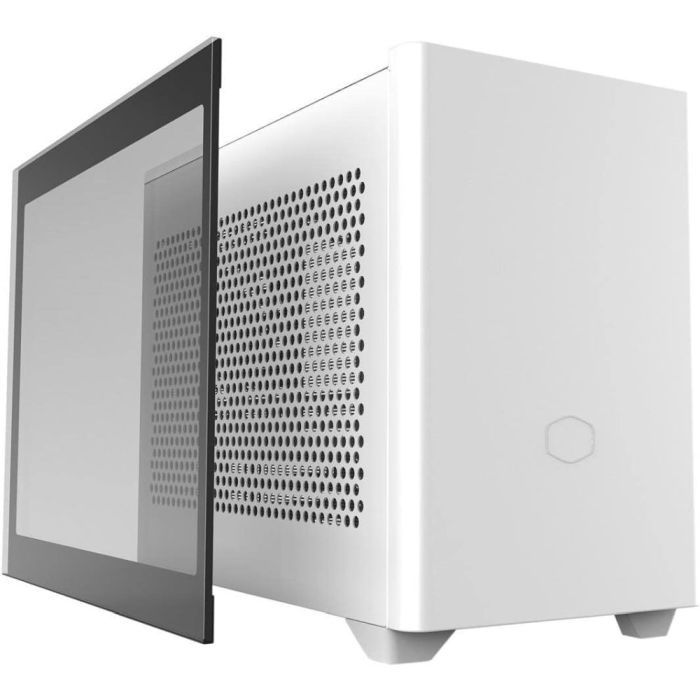

Keep cool with a highly vented side panel, or look cooler with a crystal-clear tempered glass panel; both are included to satisfy performance and style preferences.
BND 129.00
LIMITED SIZE, UNLIMITED OPTIONS
The NR200P includes many features found in larger ATX chassis while retaining a space-efficient form factor. The NR200P comes with the choice of a vented steel side panel for unrestricted airflow, or a crystal-clear tempered glass side panel to reveal the beauty of a computing beast.
A PCI Riser is included for vertical GPU installation to better showcase it against the glass, or to feed it fresh air from the side with the vented panel.
UNRESTRICTED COOLING POTENTIAL
The NR200P can house up to 7 fans in total for every cooling configuration imaginable. Two 120mm Sickleflow fan are included. The compact structure can efficiently house CPU coolers up to 155mm in height and radiators up to 280mm in length, so even the hottest running hardware can't be held back.
TRIPLE-SLOT GPU SUPPORT AND INCLUDED VERTICAL RISER CABLE
Triple slot GPUs are supported with a maximum length of 330mm and maximum width of 156mm allowing the fitment of large high-end graphics cards. A custom-sized riser cable is included to mount a graphics card vertically to showcase it, or allow radiator mounting at the bottom of the chassis to keep the system running as cool as it looks.
BUILD SMALL. PLAY BIG.
This case is compatible with SFF-Ready Enthusiast GeForce cards, so you can pack high performance into a smaller footprint. Look for SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
|
Materials - Exterior |
SGCC Steel, Mesh, ABS Plastic |
|
Materials - Left Side Panel |
Tempered Glass x1, Steel x1 |
|
Dimensions (L x W x H) |
376 x 185 x 292mm (incl. Protrusions), 360 x 185 x 274mm (excl. Protrusions) |
|
Volume |
18.25L (exlc. Protrusions) |
|
Motherboard Support |
Mini-ITX, Mini-DTX, Max. size: 244 x 226mm |
|
Expansion Slots |
3 |
|
5.25" Drive Bays |
0 |
|
3.5" Drive Bays |
1 (Max. 2) |
|
2.5" / 3.5" Drive Bays (Combo) |
1 |
|
2.5" Drive Bays |
2 (Max. 3) |
|
I/O Panel - USB Ports |
2x USB 3.2 Gen 1 (USB 3.0) |
|
I/O Panel - Audio In / Out |
1x 3.5mm Headset Jack (Audio+Mic) |
|
Accessories |
1x PCIe 3.0 x16 riser cable |
|
Pre-installed Fans - Top |
2x 120mm 650-1800RPM PWM (SickleFlow) |
|
Pre-installed Fans - Front |
N/A |
|
Pre-installed Fans - Rear |
N/A |
|
Pre-installed Fans - Bottom |
N/A |
|
Fan Support - Top |
2x 120mm |
|
Fan Support - Side |
2x 120/140mm |
|
Fan Support - Rear |
1x 92mm |
|
Fan Support - Bottom |
2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots) |
|
Radiator Support - Top |
N/A |
|
Radiator Support - Left side |
120 / 140 / 240 / 280mm (not compatible with vertical GPU installation) |
|
Radiator Support - Rear |
92mm (Not Compatible with Vertical GPU Installation) |
|
Radiator Support - Bottom |
120/240mm (recommended only for single slot water-cooled GPUs or vertically mounted GPUs) |
|
Clearance - CPU Cooler |
155mm (vented steel side panel), 153mm (tempered glass side panel), 76mm (GPU in vertical position) |
|
Clearance - PSU |
130mm |
|
Clearance - GFX |
L: 330mm (incl. power connector), H: 156mm (incl. power connector), W: 60mm (triple slot) |
|
Dust Filters |
Bottom, Left, Right, Top Panels |
|
Power Supply Support |
SFX, SFX-L |
|
Size |
Mini ITX |
