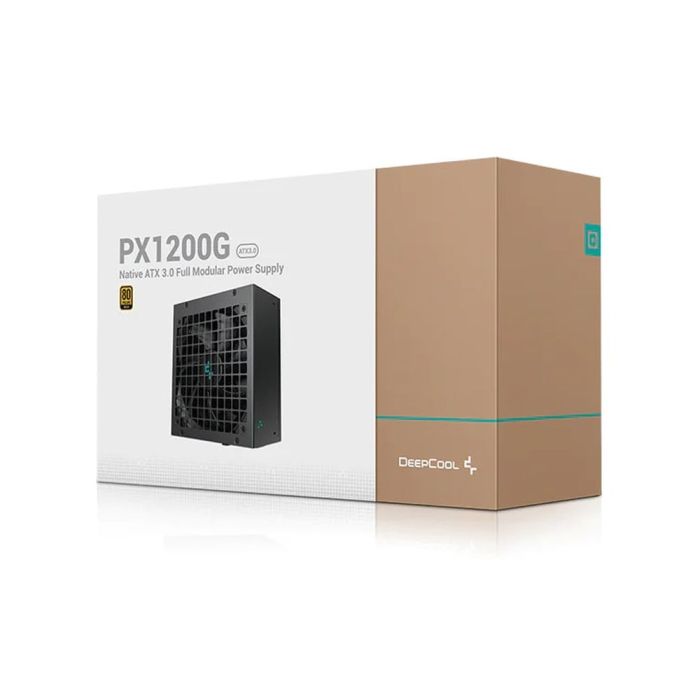

DEEPCOOL 1200W PX1200-G UK FULL MODULAR 80+ GOLD POWER SUPPLY
PAST, PRESENT, AND FUTURE
With the ability to provide three times the total GPU and twice the total system power for 0.1 ms, power spikes will never be an issue. The PX1200G will provide stable and consistent power for legacy and next-generation PCs for the foreseeable future.
RELIABLE STABILITY
Through the use of a dual main capacitor topology,
the PX1200G can keep the hold-up time to ≥ 16ms under full load.
PCI-E 5.0 POWER PERFECTED
Equipped with the new PCI-e Gen 5.0 12VHPWR cable, the PX-G provides up to 600W for power hungry GPUS.
STATIC TO DYNAMIC
The PX1200G comes equipped with the option to switch into semi-fanless operation. In hybrid mode, the 135mm FDB fan will dynamically adjust out of its zero RPM state once the system load hits a certain threshold.
PEACE OF MIND
The PX1200G includes a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, and UVP.
Type | ATX12V V3.0 |
Product Dimensions | 150×160×86mm (W x L x H) |
Efficiency certification | 80Plus GOLD/Cybenetics_Platinum |
Fan Size | 135mm |
Fan Bearing | FDB (Fluid Dynamic Bearing) |
Topology | Active PFC + Half Bridge SRC LLC + DC to DC |
Capacitors | Full Japan Electrolytic Capacitors |
Power Good Signal | 100-150ms |
Hold Up Time | ≥16ms |
Efficiency | ≥90% Under Typical Load(50% Loading) |
Protection | OPP/OVP/SCP/OTP/OCP/UVP |
Operation Temperature | 0 - 40℃ |
Regulatory | CE/FCC/CCC/TUV-RH/RCM/EAC/CAN ICES-003(B)/NMB-003(B)/UKCA/BIS/KC; |
Erp Regulation | ErP 2014 |
Environment Protection | WEEE/中国 RoHS/Triman |
MTBF | 100,000 Hours |
