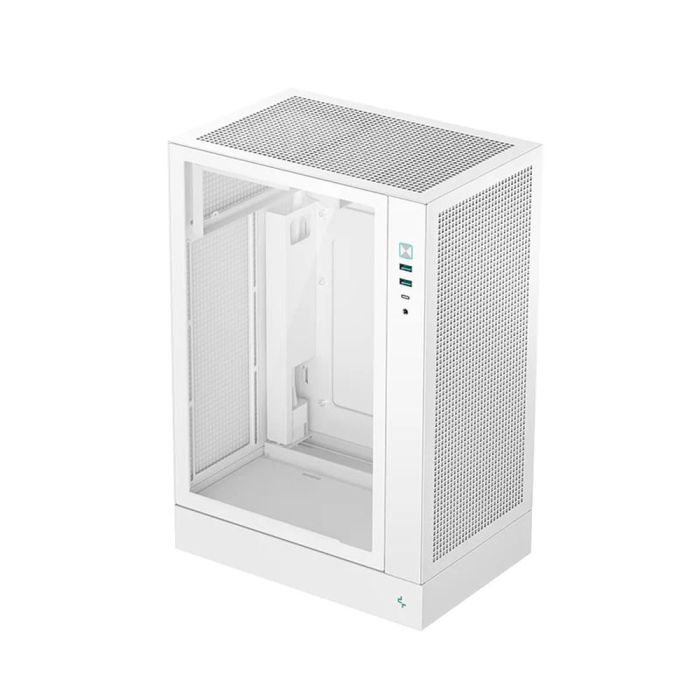

DEEPCOOL CH170 PLUS MATX CASING - WHITE R-CH170-WHNGM0-G
The CH170 PLUS is a vertical mid-tower case with all the high-airflow features, offering flexibility for coolers and PSU options in a compact design.
BND 88.00
BUILT TO BREATH
Mesh panels across multiple sides boost airflow to keep your system cool, while a tempered glass panel highlights your components.
ROOM FOR BIGGER GPU
No matter your PSU choice, the CH170 PLUS supports GPUs up to 342mm in length 328mm with top fan installed, with widths up to 138mm and thicknesses up to 75mm. Cards can be directly inserted into the motherboard.
FLEXIBLE POWER OPTIONS
Whether you choose to go with ATX, SFX, or SFX-L power supplies, the CH170 PLUS can support any of them up to 140mm.
CONVENIENCE IN EVERY DETAIL
Everyday access is easy with two USB 3.0 ports, a Gen2 Type-C, and a hybrid audio jack all within reach. Dust filters on four sides keep maintenance simple and your build clean.
|
Product Dimensions |
290mm*195mm*424.5mmL×W×H |
|
Net Weight |
4.4Kg |
|
Materials |
ABS+SPCC+Tempered Glass |
|
Motherboard Support |
Mini-ITX / Micro-ATX |
|
Front I/O Ports |
USB3.0×2?Gen2 Type-C x1?Audio/Mic×1 |
|
3.5" Drive Bays |
1 |
|
2.5" Drive Bays |
1+1 |
|
Expansion Slots |
4Slots |
|
Pre-Installed Fans |
None |
|
Fan Support |
Top:1×120mm/1×140mm?with SFX PSU? |
|
Radiator Support |
Front: NA |
|
CPU Cooler Height Limit |
164mm |
|
GPU Length Limit |
342mm |
|
Power Supply Type |
ATX PS2?maximum length: 140mm/SFX/SFX-L |
