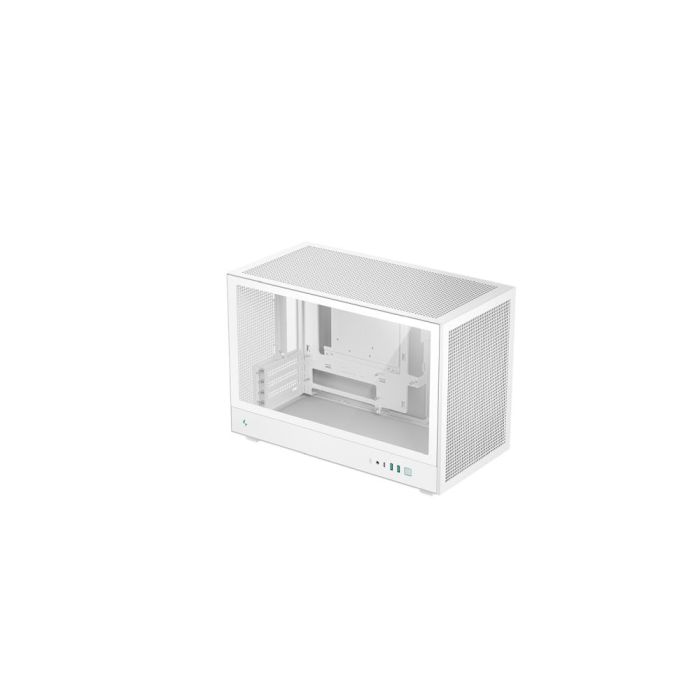

DEEPCOOL CH260 MATX CASING - WHITE (R-CH260-WHNGM0-G-1)

The CH260 is an expanded version of the classic DeepCool ITX case CH160, it is capable of containing up to M-ATX motherboard and inherited with the high airflow legacy thanks to the full steel mesh panel.
BND 79.00

GO MICRO

The Micro Form Factor CH260 comes with a tempered glass side panel to give your modern internal gears a show as the perforated top and front panels can be decked out with PIXEL rubber bits. The case also meets the rising demands for rear connector motherboards with a wider clearance of 29.6mm in the backplane.

SMALL SIZE OUTSIDE, FULL SIZE INSIDE

The CH260 provides multiple options in key components compatibility which can support full-size GPU up to 388mm in length or goes even longer to 413mm without front fan placement. ATX PS2 power supply can also fit into the case with a removable mounting bracket to free up space for easy cable management.

UNCOMPROMISED VENTILATION

The wraparound mesh panels and up to six 120mm fan placements effectively ensure cool air flows through the compact system and takes heat away. The maximum thermal hardware can go up to a 360mm AIO liquid cooler on top or a 174mm high tower heat sink on the CPU.



Materials

ABS+SPCC+Tempered Glass

Motherboard Support

Mini-ITX / Micro-ATX
Micro-ATX(Rear Connector)

Front I/O Ports

USB3.0×2?Gen2 Type-C x1?Audio/Mic×1

3.5" Drive Bays

1

2.5" Drive Bays

1

Expansion Slots

4Slots

Pre-Installed Fans

None

Fan Support

Front:2×120mm
Top:3×120mm/2×140mm
Rear: 1×120mm

Radiator Support

Front: NA
Top:120/240/360mm
Bottom: NA
Rear:120mm

CPU Cooler Height Limit

174mm

GPU Size Limit

388/413mm?No Front fans?

Power Supply Type

ATX PS2?maximum length: 150mm?
