SKU
DEEPCOOL-120
In stock

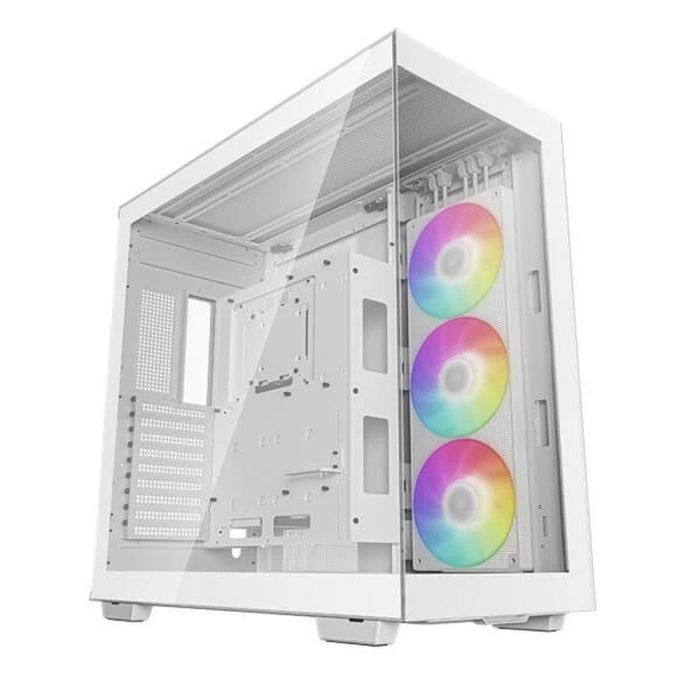

DEEPCOOL CH780 MATX CASING- WHITE

DeepCool CH780 ARGB Full Tower Cabinet
BND238.00

PANORAMIC GLASS-DUAL CHAMBER LAYOUT

With its highly sought-after panoramic glass and dual chamber layout, the CH780 WH provides both premium tempered glass panels and the undeniable aesthetics of a dual chamber setup. The lack of an A pillar removes the main obstruction to a clear and uninterrupted view of the main chamber, while the second chamber houses the less appealing cable management, drives, and power supply.

MAXIMIZED COMPATIBILITY
The ATX+ form factor of the CH780 WH case guarantees compatibility with a large range of components. This panoramic DeepCool case supports E-ATX motherboards while also having compatibility for GPUs up to 480mm in length. The dual chamber layout limits GPU mounting to the vertical position, but a PCI-e riser cable and vertical mount are included.

EXTENSIVE COOLING CAPABILITY
Fan options are plentiful, with the ability to mount nine 120mm or 140mm fans or go to the extreme and add up to four 200mm fans into the conversation. The highly modular fan rails make these configurations a reality.


The CH780 WH can also support up to three 420mm radiators simultaneously. 420mm radiators can be mounted to the top, bottom, and side of the motherboard tray. The CPU cooler height is limited to 132mm due to the internal configuration.

A TRINITY OF FANS!
A set of highly convenient trinity fans come mounted inside the CH780 WH: three beautifully bright 140mm ARGB fans are united into a single 420mm unit. The trinity of fans only require the wiring of a single set of PWM and ARGB cables, greatly reducing the amount of cable management.

QUALITY OF LIFE UPGRADES
The magnetic tempered glass side panel makes upgrading components a breeze, while the secondary option to lock the panel in place with screws provides an extra bit of security. A swing-out GPU support arm is built into the case, and a generous 26mm of cable management makes everything a little less complicated. A magnetic top mesh filter helps keep the dust out and can be cleaned with ease.



 Model Number

R-CH780-WHADE41-G-1

 Product Dimensions

 528×250×551mm(L×W×H)

 Net Weight

 13.7Kg

 Materials

 ABS+SPCC+Tempered Glass

 Motherboard Support

 Mini-ITX / M-ATX / ATX / E-ATX

 Front I/O Ports

 USB3.0×4、Audio×1、Type-C×1

 3.5"" Drive Bays

 2

 2.5"" Drive Bays

 2+1

 Expansion Slots

 9 Slots

 Pre-Installed Fans

 Side:1×420mm ARGB

 Fan Support

 Top: 3×120 / 3×140 / 2×180 / 2×200mm
Side: 3×120 / 3×140mm
Bottom: 3×120 / 3×140 / 2×180 / 2×200mm

 Radiator Support

 Top: 120/140/240/280/360/420mm
Side: 120/140/240/280/360/420mm
Bottom: 120/140/240/280/360/420mm

 CPU Cooler Height Limit

 132mm

 GPU Length Limit

 480mm

 Power Supply Type

 ATX PS2(maximum length: 180mm)
