SKU
KINGSTON-831
In stock

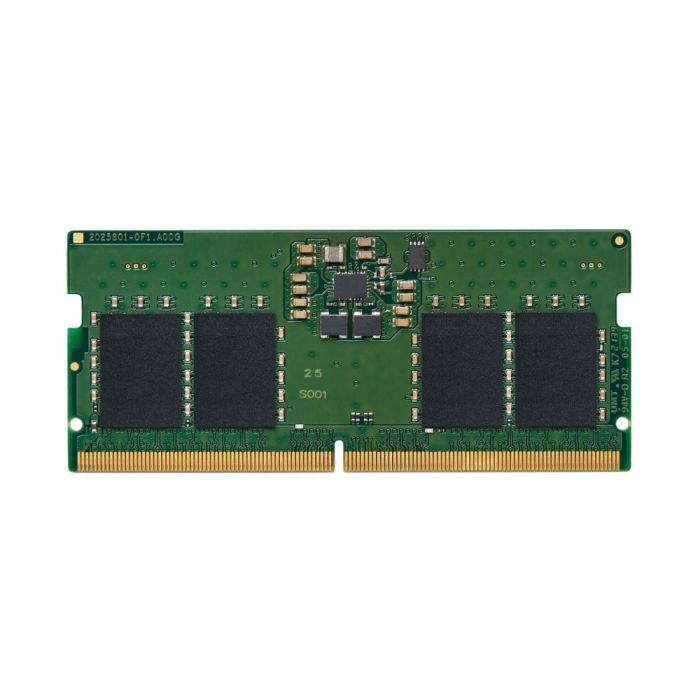

KINGSTON 16GB DDR5 4800MT/S SODIMM KVR48S40BS8-16
ValueRAM's KVR48S40BS8-16 is a 2G x 64-bit (16GB) DDR5-4800 CL40 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components.
BND93.00
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- PCB: Height 1.18” (30.00mm)
- RoHS Compliant and Halogen-Free
CL(IDD) | 40 cycles |
Row Cycle Time (tRCmin) | 48ns(min.) |
Refresh to Active/Refresh Command Time (tRFCmin) | 295ns(min.) |
Row Active Time (tRASmin) | 32ns(min.) |
UL Rating | 94 V - 0 |
Operating Temperature | 0° C to +85° C |
Storage Temperature | -55° C to +100° C |
