SKU
KINGSTON-467
In stock

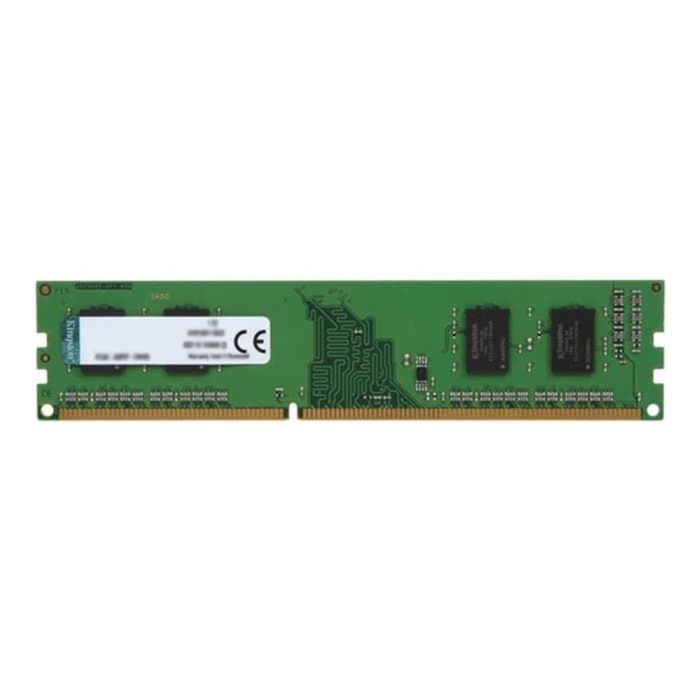

KINGSTON 4GB DDR4 2666MT/s SDRAM KVR26N19S6/4
a 512M x 64-bit (4GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 512M x 16-bit FBGA components.
BND29.00
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 8 internal banks; 2 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.23” (31.25mm)
- RoHS Compliant and Halogen-Free
CL(IDD) | 19 cycles |
Row Cycle Time (tRCmin) | 45.75ns(min.) |
Refresh to Active/Refresh Command Time (tRFCmin) | 350ns(min.) |
Row Active Time (tRASmin) | 32ns(min.) |
Maximum Operating Power | TBD W |
UL Rating | 94 V - 0 |
Operating Temperature | 0o C to +85o C |
Storage Temperature | -55o C to +100o C |
