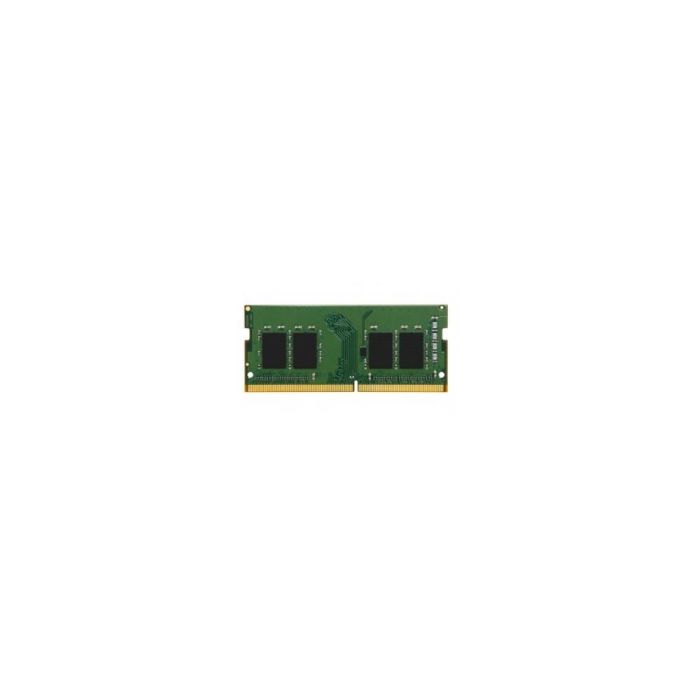

KINGSTON 4GB DDR4 2933MT/s SODIMM KVR29S21S6/4

• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• Nominal and dynamic on-die termination (ODT) for

 data, strobe, and mask signals

• Low-power auto self refresh (LPASR)
• Data bus inversion (DBI) for data bus
• On-die VREFDQ generation and calibration
• Single-rank
• On-board I2 serial presence-detect (SPD) EEPROM
• 8 internal banks; 2 groups of 4 banks each
• Fixed burst chop (BC) of 4 and burst length (BL) of 8

 via the mode register set (MRS)

• Selectable BC4 or BL8 on-the-fly (OTF)
• Fly-by topology
• Terminated control command and address bus
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free
