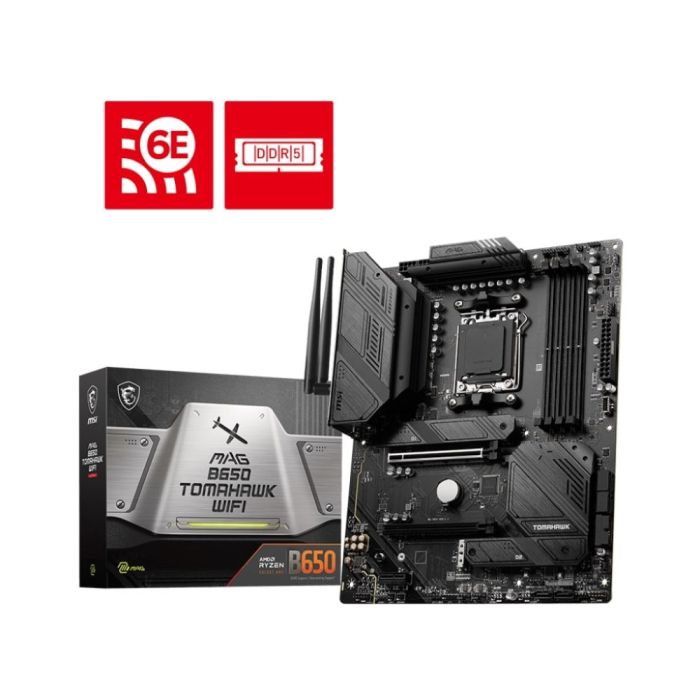

MSI MAG B650 TOMAHAWK WIFI ATX MOTHERBOARD
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, up to 6400+(OC) MHz
- Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
- 5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
- Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experienc
CHIPSET | AMD B650 |
CPU SUPPORT | Supports AMD Ryzen™ 7000 Series Desktop Processors |
Socket AM5 | |
MEMORY | 4x DDR5, Maximum Memory Capacity 128GB |
Memory Support DDR5 6600+(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800(JEDEC) MHz | |
ONBOARD GRAPHICS | 1x HDMI™ |
1x DisplayPort | |
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* | |
Support DP 1.4, maximum resolution of 8K 60Hz* | |
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
EXPANSION SLOT | 2x PCI-E x16 slot |
Support x16/ x4 | |
1x PCI-E x1 slot | |
PCI_E1 PCIe 4.0 supports up to x16 (From CPU) | |
PCI_E2 PCIe 4.0 supports up to x4 (From Chipset) | |
PCI_E3 PCIe 3.0 supports up to x1 (From Chipset) | |
STORAGE | 3x M.2 slot |
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
6x SATA 6G port | |
RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices* |
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | |
* SATA_A1_A2 do not support RAID function. | |
USB | 2x USB 2.0 (Rear) |
4x USB 2.0 (Front) | |
4x USB 3.2 Gen1 Type A (Rear) | |
2x USB 3.2 Gen1 Type A (Front) | |
3x USB 3.2 Gen2 Type A (Rear) | |
1x USB 3.2 Gen2 Type C (Front) | |
1x USB 3.2 Gen2x2 Type C (Rear) | |
LAN | Realtek® RTL8125B 2.5Gbps LAN |
WIRELESS / BLUETOOTH | AMD Wi-Fi 6E |
The Wireless module is pre-installed in the M.2 (Key-E) slot | |
Supports MU-MIMO TX/RX | |
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands | |
Supports 802.11 a/ b/ g/ n/ ac/ ax | |
Supports Bluetooth® 5.2** | |
""* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. | |
** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11."" |
