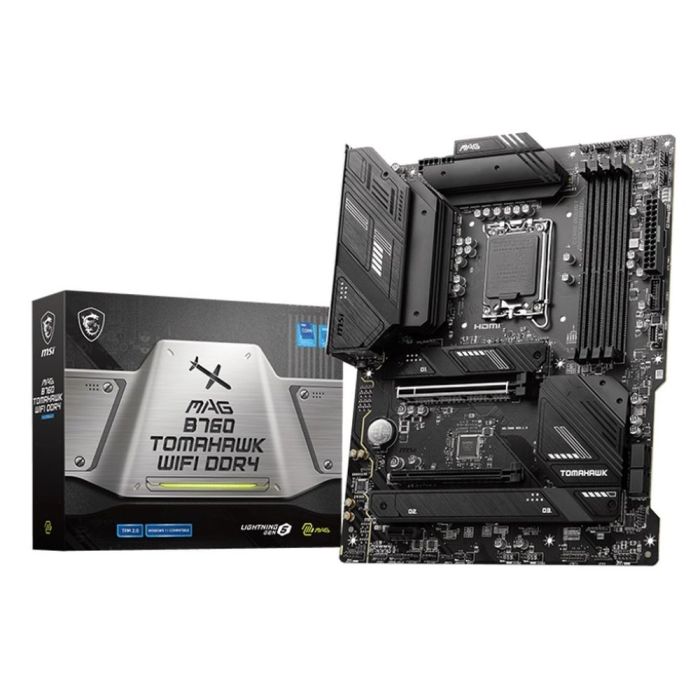

MSI MAG B760 TOMAHAWK WIFI DDR4 ATX MOTHERBOARD
Set the foundation of your next PC build with the robust MSI MAG B760 TOMAHAWK WIFI DDR4 LGA 1700 ATX Gaming Motherboard. Designed to leverage the power of 12th and 13th Gen Intel CPUs, the MAG offers a solid foundation designed for gaming enthusiasts.
- ATX Form Factor
- B760 Chipset
- LGA 1700 Socket
- 4 x Dual-Channel DDR4 RAM Slots
- 4 x SATA III, 3 x M.2 PCIe
- 1 x PCIe 5.0 x16 & 1 x PCIe 4.0 x16 (x1)
- Wi-Fi 6E | 2.5 GbE | Bluetooth 5.3
- USB 2.0, 3.2 Gen 1, Gen 2, Gen 2x2
- 1-Channel Audio Support
- Windows 10 & Windows 11 Support
Chipset | Intel B760 |
CPU Socket | LGA 1700 |
USB | 4 x USB-A (USB 2.0) |
Thunderbolt | None |
Display | 1 x DisplayPort 1.4 |
Audio | 5 x 1/8"" / 3.5 mm |
Ethernet / Controller | 1 x 2.5Gigabit |
Wi-Fi Antenna | 2 x Connector |
Memory Slots | 4 x 288-Pin |
Memory Support | DDR4 2133, 2400, 2666, 2933, 3200, 3333, 3400, 3466, 3600, 3733, 3800, 4000, 4200, 4266, 4400, 4600, 4800, 5000, 5066, 5200, 5333 MHz |
Maximum Capacity | 128 GB |
Channel Architecture | Dual Channel |
ECC Support | Non-ECC Unbuffered |
SATA | 4 x SATA III |
M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4) |
RAID Support | RAID 0, 1, 5, 10 (SATA) |
