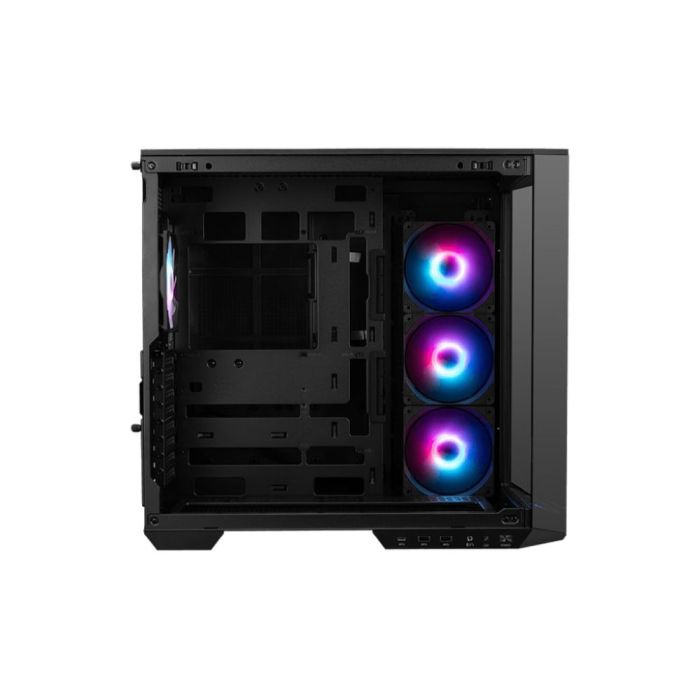

MSI MAG PANO 100R PZ ATX CASING - BLACK

MAG PANO 100R PZ

BND 188.00

Supported ATX and Micro-ATX Back-connect motherboard.
Supports 360 mm radiator on the top, side and bottom
270-degree panoramic tempered glass.
Pre-installed with 3 x 120 mm ARGB Reverse-blade fan at the side and 1 x 120 mm ARGB fan at the rear.
1-to-4 ARGB-Fan control board.
Synergize with a compatible MSI motherboard through bridging with a USB 20Gbps Type-C (20Gbps) port for high speed data transmission.
Removable dust filter at the top, side and bottom being easily removed for cleaning.
UNI front panel cable make your DIY process easier and create more possibilities to your system.

PRODUCT NAME	MAG PANO 100R PZ
CASE FORM FACTOR	Mid Tower
MOTHERBOARD FORM FACTOR SUPPORT	Regular: ATX / Micro-ATX / Mini-ITX Back-connect: ATX / Micro-ATX
I/O PORTS	1 x USB 20Gbps Type-C 2 x USB 5Gbps Type-A 1 x Audio-Out / Mic-in 1 x LED Switch Button 1 x Power Button
DRIVE MOUNT SUPPORT	3 x 2.5” 2 x 2.5”/3.5” combo
EXPANSION SLOTS	8
MAXIMUM GPU LENGTH	400 mm / 15.75 inches
MAXIMUM CPU COOLER HEIGHT	166 mm / 6.54 inches
POWER SUPPLY SUPPORT	ATX
MAXIMUM PSU LENGTH	200 mm / 7.87 inches
FAN SIZE SUPPORT	Top: 3 x 120 mm / 3 x 140 mm Front: NA Rear: 1 x 120 mm Side: 3 x 120 mm / 2 x 140 mm Bottom: 3 x 120 mm / 2 x 140 mm / 2 x 160 mm
PRE-INSTALLED FAN SIZE	Side: 3 x 120 mm Rear: 1 x 120 mm
PRE-INSTALLED FAN TYPE	Side: 3 x ARGB Reverse-blade Rear: 1 x ARGB
RADIATOR SIZE SUPPORT	Top: 120 / 240 / 360 mm Front: NA Rear: 120 mm Side: 120 / 240 / 360 mm Bottom: 120 / 240 / 360 mm
DIMENSIONS (DXWXH)	518.7 x 290 x 482 mm / 20.42 x 11.42 x 18.98 inches
