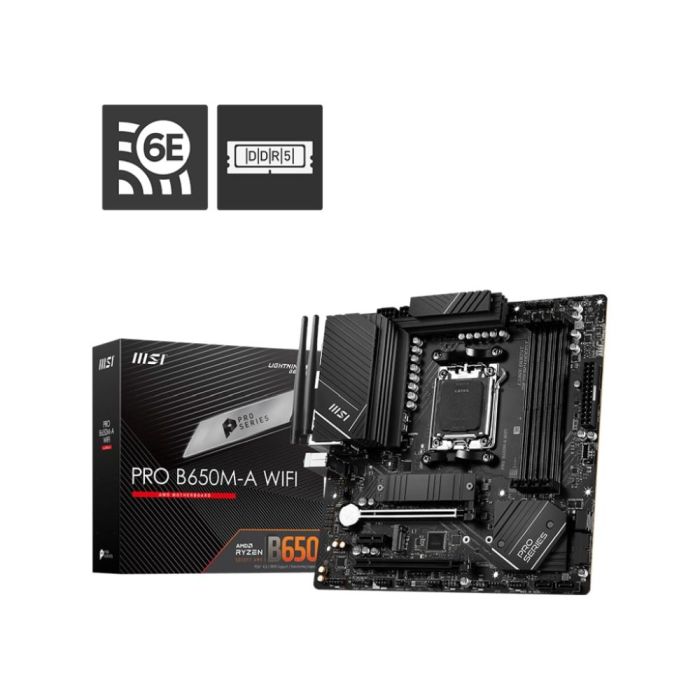

MSI PRO B650M-A WIFI MATX MOTHERBOARD
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr
- 5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
CHIPSET | AMD B650 |
CPU SUPPORT | Supports AMD Ryzen™ 7000 Series Desktop Processors |
Socket AM5 | |
MEMORY | 4x DDR5, Maximum Memory Capacity 128GB |
Max. overclocking frequency: | |
• 1DPC 1R Max speed up to 6400+ MHz | |
• 1DPC 2R Max speed up to 5800+ MHz | |
• 2DPC 1R Max speed up to 6000+ MHz | |
• 2DPC 2R Max speed up to 4000+ MHz | |
Supports Dual-Channel mode | |
Supports non-ECC, un-buffered memory | |
Supports AMD EXPO | |
ONBOARD GRAPHICS | 1x HDMI™ |
1x DisplayPort | |
Support HDMITM 2.1, maximum resolution of 4K 60Hz* | |
Supports DP1.4, maximum resolution of 4K 60Hz* | |
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
EXPANSION SLOT | 2x PCI-E x16 slot |
1x PCI-E x1 slot | |
PCI_E1 PCIe 4.0 supports up to x16 (From CPU) | |
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) | |
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) | |
STORAGE | 2x M.2 slot |
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices | |
4x SATA 6G port | |
RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices | |
USB | 4x USB 2.0 (Front) |
4x USB 3.2 Gen1 Type A (Rear) | |
2x USB 3.2 Gen1 Type A (Front) | |
4x USB 3.2 Gen2 Type A (Rear) | |
1x USB 3.2 Gen2 Type C (Front) | |
LAN | Realtek® 8125BG 2.5G LAN |
WIRELESS / BLUETOOTH | AMD Wi-Fi 6E |
The Wireless module is pre-installed in the M.2 (Key-E) slot | |
Supports MU-MIMO TX/RX | |
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands | |
Supports 802.11 a/ b/ g/ n/ ac/ ax | |
Supports Bluetooth® 5.2** | |
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. | |
** Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11. |
