SKU
MSI-172
In stock

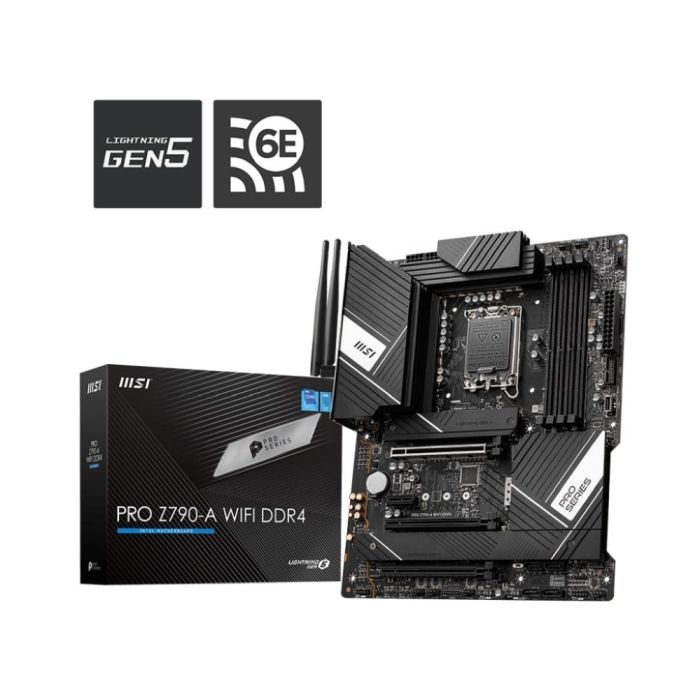

MSI PRO Z790-A WIFI DDR4 ATX MOTHERBOARD
PRO Z790-A WIFI DDR4 is designed with tons of flexible tools and convenient Wi-Fi solution with DDR4 memory version.
BND 328.00
- Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)
- Enhanced Power Design: 16+1+1 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- 5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
|
CHIPSET |
INTEL Z790 |
|
CPU SUPPORT |
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors |
|
LGA 1700 |
|
|
MEMORY |
4x DDR4, Maximum Memory Capacity 128GB |
|
Memory Support 5333/5200/5066/5000/4800/4600/4533/4400/4266/4000/3866/3733/3600/3466/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133(By JEDCE & POR) |
|
|
Max. overclocking frequency: |
|
|
• 1DPC 1R Max speed up to 5333+ MHz |
|
|
• 1DPC 2R Max speed up to 4800+ MHz |
|
|
• 2DPC 1R Max speed up to 4400+ MHz |
|
|
• 2DPC 2R Max speed up to 4000+ MHz |
|
|
Supports Dual-Channel mode |
|
|
Supports non-ECC, un-buffered memory |
|
|
Supports Intel® Extreme Memory Profile (XMP) |
|
|
ONBOARD GRAPHICS |
1x HDMI™ |
|
1x DisplayPort |
|
|
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* |
|
|
Support DP 1.4, maximum resolution of 8K 60Hz* |
|
|
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
|
EXPANSION SLOT |
3x PCI-E x16 slot |
|
1x PCI-E x1 slot |
|
|
PCI_E1 PCIe 5.0 supports up to x16 (From CPU) |
|
|
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset) |
|
|
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset) |
|
|
PCI_E4 PCIe 3.0 supports up to x1 (From Chipset) |
|
|
STORAGE |
4x M.2 slot |
|
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices |
|
|
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices |
|
|
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
|
|
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
|
|
6x SATA 6G port |
|
|
RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
|
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
|
|
USB |
2x USB 2.0 (Rear) |
|
4x USB 2.0 (Front) |
|
|
2x USB 3.2 Gen1 Type A (Rear) |
|
|
2x USB 3.2 Gen1 Type A (Front) |
|
|
3x USB 3.2 Gen2 Type A (Rear) |
|
|
1x USB 3.2 Gen2 Type C (Front) |
|
|
1x USB 3.2 Gen2x2 Type C (Rear) |
|
|
LAN |
Intel® 2.5Gbps LAN |
|
WIRELESS / BLUETOOTH |
Intel® Wi-Fi 6E |
|
The Wireless module is pre-installed in the M.2 (Key-E) slot |
|
|
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps |
|
|
Supports 802.11 a/ b/ g/ n/ ac/ ax |
|
|
Supports Bluetooth® 5.3, FIPS, FISMA |
