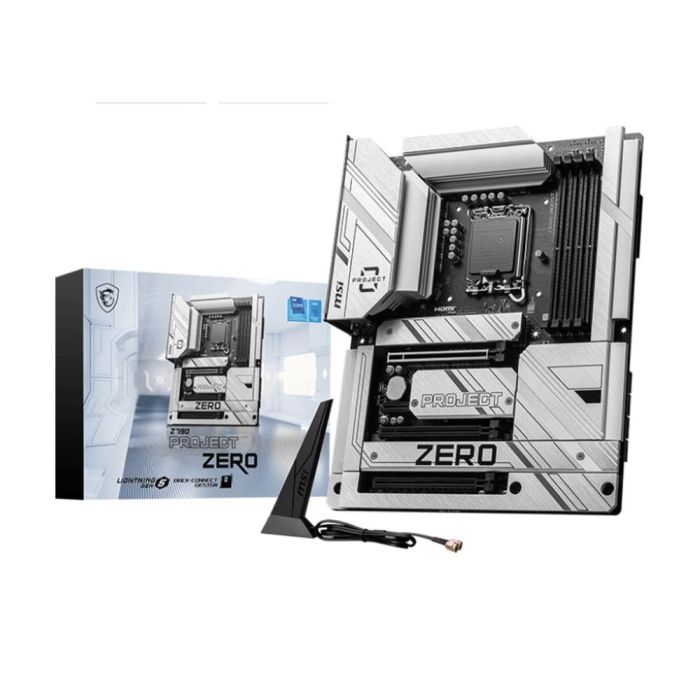

MSI Z790 PROJECT ZERO DDR5 ATX MOTHERBOARD

OPERATING SYSTEM

Support for Windows® 11 64-bit, Windows® 10 64-bit

MANUFACTURER NUMBER

Z790 PROJECT ZERO

PRODUCT CONDITION

New

CPU

Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA1700

CHIPSET

Intel® Z790 Chipset

CPU SOCKET

LGA1700

FORM FACTOR

ATX Form Factor

MEMORY

4x DDR5 UDIMM, Maximum Memory Capacity 192GB
Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:

  1DPC 1R Max speed up to 7200+ MHz

  1DPC 2R Max speed up to 6600+ MHz

  2DPC 1R Max speed up to 6400+ MHz

  2DPC 2R Max speed up to 5600+ MHzSupports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile

LAN

Intel® 2.5Gbps LAN

WIRELESS LAN

Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

BLUETOOTH

Supports Bluetooth® 5.3, FIPS, FISMA

AUDIO

Realtek® ALC897 Codec
7.1-Channel High Performance Audio
Supports S/PDIF output
