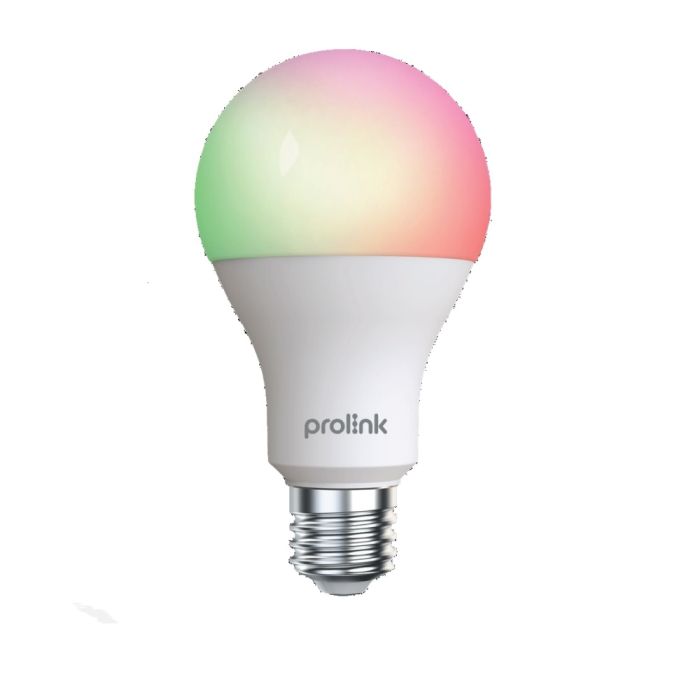

PROLINK DS-3601 E27 SMART LED BULB (9W)

Driver Specification

DS-3601-9W

Input voltage/frequency (V/Hz)

AC220-240V 50Hz

Input Power (W)

9W± 10%

Input Current (A)

0.1A MAX

PF:

>0.5

Output Current (mA)

285-315mA

Output No-load Voltage

29VDCmax.

Rated Voltage

24-28VDC

Efficiency (%)

>=85 230V/50Hz

Standby Power (W)

<1

Surge Protection

up to 1.5KV

Operating Temperature (degree)

-10 - 40-degree Celsius

Storage Temperature (degree)

-20 - 70-degree Celsius

Certification

CE,BIS

Safety

IEC60598-1

EMC

EN55015 ; IEC61547

Product Optoelectrical Technical Specification

Lumen (LM)

900LM

Color Temperature (K)

2700K-6500K

Color Rendering Image

>=80

Coverage Angle

160 degree

LED Specification

2700K 2835 9V 100mA

6500K 2835 9V 100mA

3528RGB 60mA

Lifetime

25000 hrs

Lamp Base

E27

Function

CCT, Dimming, RGB

Color

16 million color

Wireless Standard

IEEE 802.11b/g/n

Bluetooth

Yes
