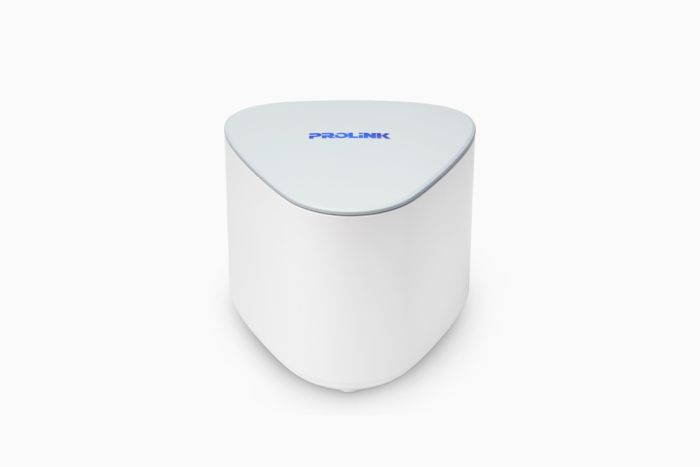

PROLINK PRC2402M AC2100 HOME WIFI SMART MESH (SINGLE)

TECHNICAL SPECIFICATIONS

Interface

1x 10/100/1000Mbps WAN/LAN port

2x 10/100/1000Mbps LAN port

1x USB port

Button

1x Power On/Off Switch

1x Reset to factory default button

1x Pairing button

1x Touch sensor

LED

1x Dynamic lighting status indicator

Power Supply

DC 5V 3A

Rated Voltage/Frequency

Input: 100 – 240 VAC, 50/60Hz

WIRELESS

Wireless Output Power

2.4GHz: up to 20dBm

5GHz: up to 23dBm

Wireless Channels / frequency

2.4GHz: Channel 1 ~ 13 (2412 ~ 2472 MHz)

5GHz: 36, 40, 44, 48, 149, 153, 157, 161, 165 (5180 ~ 5240 and 5745 ~ 5825 MHz)

Wireless Channel Bandwidth

2.4GHz: 20/40MHz

5GHz: 20/40/80MHz

Wireless Standards

IEEE 802.11b/g/n/a/ac

IEEE 802.11k

IEEE 802.11r

Wireless Frequency Band

2.4GHz Wireless-N

5GHz Wireless-AC

Wireless Link Rate

Up to 300Mbps at 2.4GHz Wireless-N

Up to 1733Mbps at 5GHz Wireless-AC

Wireless Antenna

4x 5GHz Omni Directional Antenna (Internal)
2x 2.4GHz Omni Directional Antenna (Internal)

Wireless Security

WPA/WPA2, WPA-PSK/WPA2-PSK encryption

SOFTWARE

Internet (WAN) Connection
Type

Dynamic IP, Static IP, PPPoE

DHCP Setting

Server, Client

Functions

DDNS, Port Forwarding, DMZ, NTP

App support

Android 5.0 and above, IOS 9.0 and above

DIMENSION & WEIGHT

Dimension

Single Pack

125mm x 134mm x 116mm (L x W x H without packaging)

215 x 149 x 120 mm (L x W x H with Packaging)

Weight

Single Pack

- 450g (Each Xtend Pro)

- 975g (With packaging)

PACKAGE CONTENT

Single Pack

• 1 x PRC2402M Xtend Pro
• 1 x Power Adapter
• 1 x RJ45 Ethernet Cable
• 1 x Quick Installation Guide
