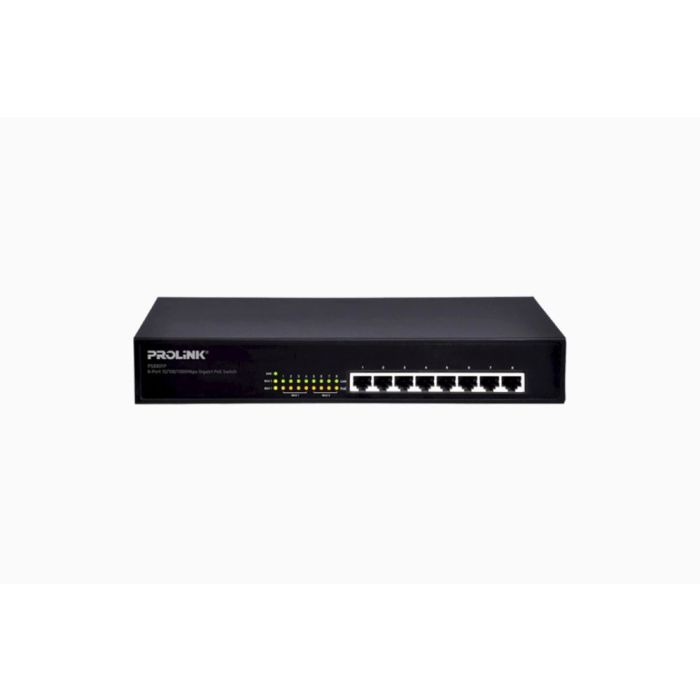

PROLINK PSG801P 8-PORT GIGABIT POE ETHERNET SWITCH
8-Port Gigabit PoE Ethernet Switch
- Store-and-forward switching method
- Supports poe power up to 30w for each poe port; total power budget up to 140w
- Supports up to 4k mac address table with auto-learning and auto-aging
- Internal 150w power adapter supply
- 8 x 10/100/1000 mbps auto-negotiation rj45 ports with poe function
- Robust metal frame, can be placed on a desktop or mounted on a 19” rack
Standard
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ab, IEEE 802.3az
|
Interface
|
8 x 10/100/1000Mbps Auto Negotiation ports
|
Cable Type
|
10Base-T: UTP category 3,4,5 cable (maximum 100m)
100Base-T: UTP category 5,5e cable (maximum 100m)
1000Base-T: UTP category 5e,6 cable (maximum 100m)
|
LED Indicator
|
Per port: 10/100M Link/Act:Orange, 1000M Link/Act:Green, PoE:Yellow
Per device: Power:Green, PoE MAX1/MAX2:Yellow
|
Switching Capacity
|
Up to 16G
|
MAC Address List
|
Automatically learning, automatically update 4K table
|
Frame Filtering & Forward Rate
|
10Mbps: 14880pps; 100Mbps: 148800ppd; 1000Mbps: 1488000pps
|
Power Supply
|
150W
|
PoE Power on RJ45
|
Power+: pin 1 & pin 2; Power-: pin 3 & pin 6
|
