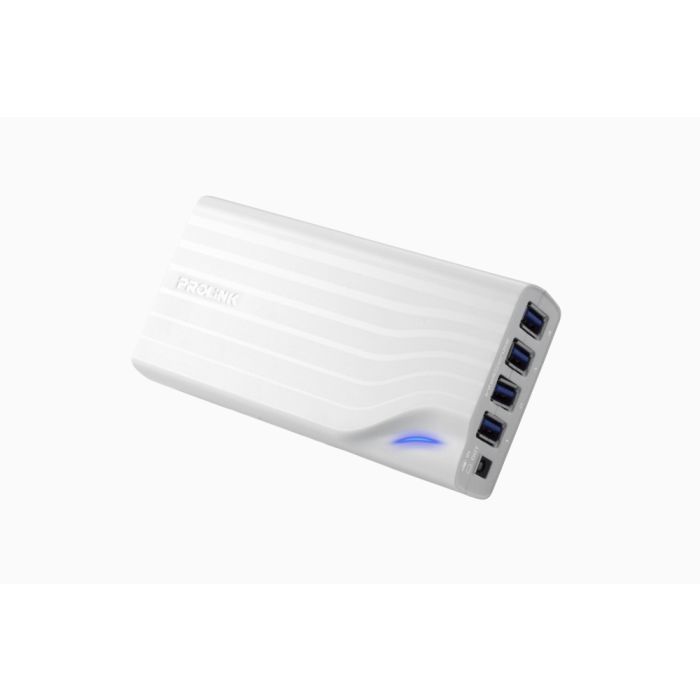

PROLINK PUH501-NB PROBRICK+4-in-1 USB3.0 HUB CHARGER AND NB ADP COMBO(WHITE)

TECHNICAL SPECIFICATIONS

INPUT

AC 100V-240V 50/60Hz

OUTPUT

4 x USB3.0 Type-A
1 x DC In/Out
1 x USB3.0 Type-B

USB3.0 Transfer Rates

5Gbps Super-Speed

Maximum Output Power

5V/16A (80W)

PROTECTION

Over-Temperature Limit

120°C (Latch-off protection)

Over-Voltage Limit

25VDC (Latch-off protection)

Over-Current Limit

DC output 19.5VDC: 3.5A (Auto-recovery protection)
USB output 5VDC: 14A (Without load on 19.5V) (Auto-recovery protection)

Short-Circuit Protection

Latch-off protection

Under Protection Mode

Blue LED will turn off

DIMENSION & WEIGHT

Dimension

225 x 122 x 65mm (L x W x H) (with box)

119 x 61 x 27mm (L x W x H) (product only)

Weight

631g (with box)

169g (product only)

SYSTEM REQUIREMENTS

OS Supported

Windows 10 or later, Windows 8, Windows 7

Mac OS X 10.10 or later

Linux® kernel 2.6+

PACKAGE CONTENT

1 x PROBRICK+ 4-in-1 USB3.0 Hub/ Quick Charger and Notebook Adapter Combo

1 x USB 3.0 + USB 2.0 V-Cable

1 x AC Power Cord

1 x User Manual

1 x Notebook Adapter Cable (optional)

1 x Notebook DC Tips (optional)

1 x Car Charger Cable (optional)

1 x Pouch
