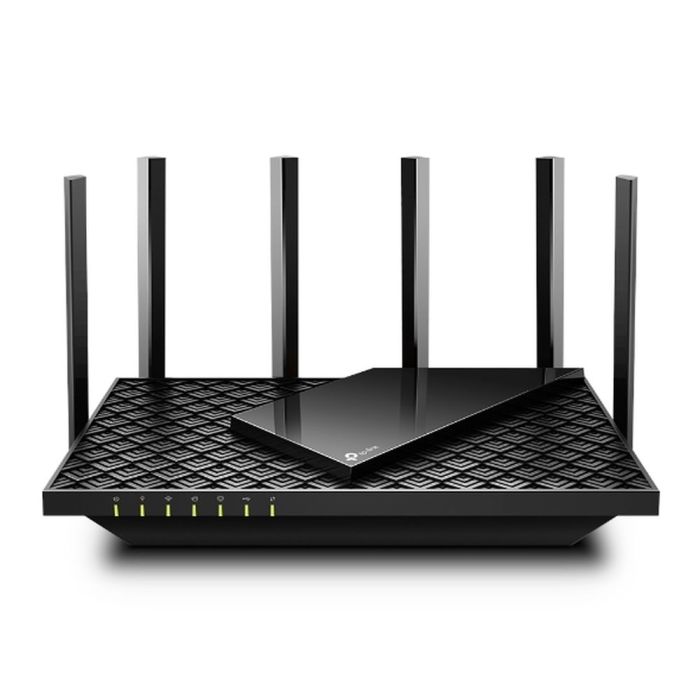

TPLINK ARCHER AX73 AX5400 WIFI ROUTER

Standards

Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz

Wi-fi Speeds

AX5400
5 GHz: 4804 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax)

Wi-fi Range

3 Bedroom Houses

6× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage

4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission

Wi-fi Capacity

High

Dual-Band
Allocate devices to different bands for optimal performance

4×4 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

DFS
Access an extra band to reduce congestion

6 Streams
Connect your devices to more bandwidth

Working Modes

Router Mode
Access Point Mode

Processor

1.5 GHz Triple-Core CPU

Ethernet Ports

1× Gigabit WAN Port
4× Gigabit LAN Ports

Static Link Aggregation (LAG) available with 2× LAN ports

USB Support

1× USB 3.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server

Buttons

Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button

Power

12 V ⎓ 2.5 A

Wi-fi Encryption

WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)

WAN types

Dynamic IP
Static IP
PPPoE
PPTP
L2TP

Dimensions (WxDxH)

10.7 × 5.8 × 1.9 in
(272.5 × 147.2 × 49.2 mm)

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Wi-fi Transmission Power

CE:
<20dBm{2.4GHz}
<23dBm{5.15GHz~5.35GHz}
<30dBm{5.47GHz~5.725GHz}
FCC:
<24dBm{5.25GHz~5.35GHz&5.47GHz~5.725GHz }
<30dBm{2.4GHz &5.15GHz~5.25GHz&5.725GHz~5.825GHz }
