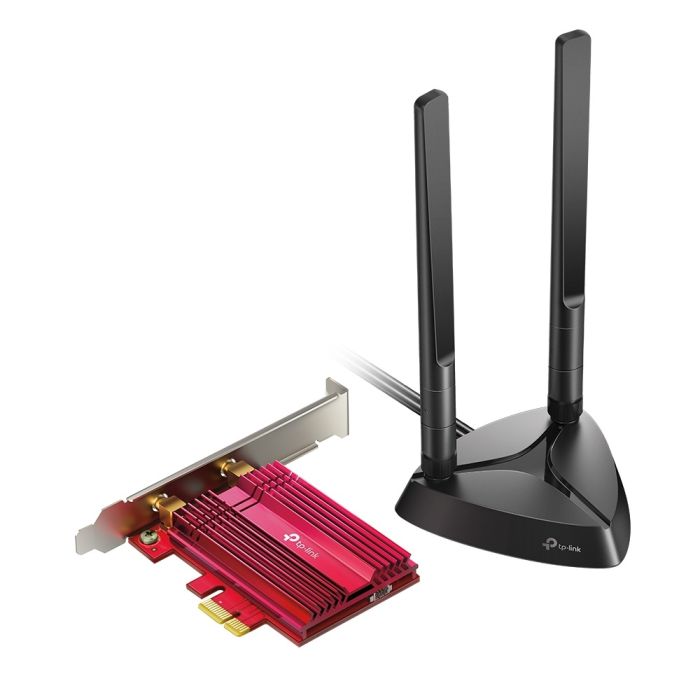

TPLINK ARCHER TX3000E AX3000 WI-FI 6 W/BLUETOOTH 5.0 PCI EXPRESS ADAPTER

Dimensions

3.7 x 4.8 x 0.8 in
(95.2 x 120.8 x 21.5 mm)

Antenna Type

Two High-Gain Dual Band Antennas
Magnetized Antenna Base

Chipset

Intel Wi-Fi 6 Chipset

Wireless Standards

IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.0/4.2/4.0

WLAN Signal Rate

5 GHz
11ax: Up to 2402 Mbps(dynamic)
11ac: Up to 1733 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)

2.4 GHz
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)

WLAN Reception Sensitivity

5 GHz :
11ax HT160?-56.25dBm
11ax HT80: -59dBm
11ax HT40: -62.25dBm
11ax HT20: -65dBm

11ac HT160?-62dBm
11ac HT80: -65.5dBm
11ac HT40: -69.75dBm
11ac HT20: -73.75dBm
11n HT40: -74.5dBm
11n HT20: -77.5dBm
11a 54Mbps: -77.75dBm
11a 6Mbps: -94.5dBm

2.4GHz :
11ax HT40: -60.75dBm
11ax HT20: -63.75dBm
11n HT40: -73dBm
11n HT20: -76.25dBm
11g 54Mbps: -76.5dBm
11b 11Mbps: -89dBm

WLAN Transmit Power

5 GHz : 27dBm(FCC)
2.4 GHz : 26dBm(FCC)

WLAN Modes

Infrastructure mode

Wireless Security

Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x

Modulation Technology

DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM

Bluetooth Profiles

Archer TX3000E support the native BT profiles implemented in Windows 10.
For the latest information on Windows 10 BT profiles

Certification

FCC, RoHS

Package Contents

Archer TX3000E
Magnetized Antenna Base with 1m RF Cable
Two 5 dBi High Gain Antennas
Low-Profile Bracket
Bluetooth Header Cable
Quick Installation Guide
Resource CD

System Requirements

Windows 10(64-bit) only

Environment

Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
