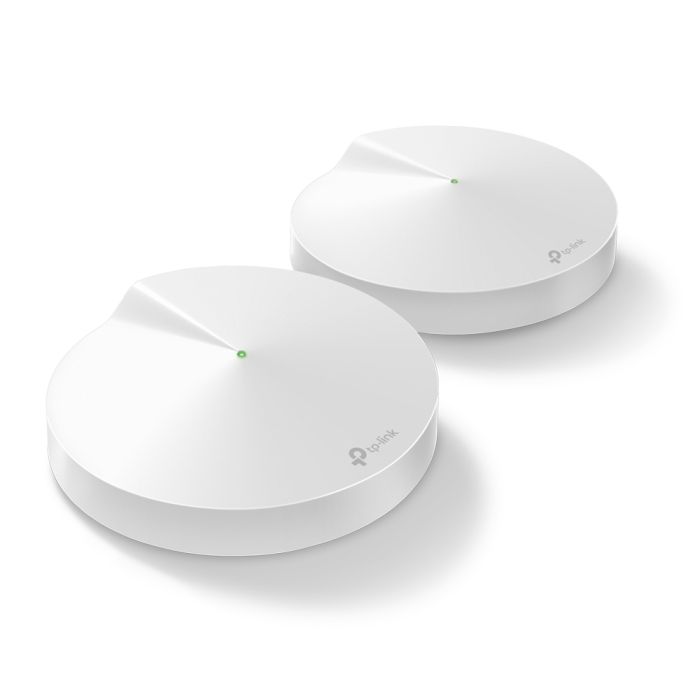

TPLINK DECO M9 PLUS (2PACK) AC2200 TRI-BAND SMART HOME MESH WIFI SYSTEM

AC adapter input

100-240V ~ 50/60Hz 0.8A

AC adapter output

12V ? 2A

Ports

2 * LAN/WAN Gigabit Ethernet Ports
1 * USB 2.0 Port (reserved)
1 * Power Port

Button

1 Reset button on the underside

External Power Supply

12 V/2 A

Dimensions

Φ5.7 in. x 2.5 in. (Φ144 mm × 64 mm)

Antenna Type

6 WiFi, 1 ZigBee & 1 Bluetooth

Wireless Standards

IEEE 802.11 ac/n/a 5 GHz
IEEE 802.11 b/g/n 2.4 GHz
Bluetooth 4.2
ZigBee HA1.2

Frequency

2.4 GHz and 5 GHz

Signal Rate

867 Mbps at 5 GHz (1)
867 Mbps at 5 GHz (2)
400 Mbps at 2.4 GHz

Transmit Power

FCC: <30 dBm

Wireless Security

WPA-PSK/WPA2-PSK

Advanced Functions

·         Router/ Access Point Mode

·         Optional Ethernet Backhaul

·         TP-Link Mesh Technology:

·         MU-MIMO

·         Auto Path Selection

·         Self-Healing

·         AP Steering

·         Band Steering

·         Beamforming

Quality of Service

WMM

WAN Type

Dynamic IP/Static IP/PPPoE

Management

Local Management, Remote Management

DHCP

Server, Client

Firewall Security

SPI Firewall

Protocols

Supports IPv4 and IPv6

Advanced Features

Parental Controls
3-Year Free Built-In Antivirus
QoS (Quality of Service)
Reporting
Assisted Setup
Works with Alexa & IFTTT
Automation (for smart home devices)

Guest Network

2.4 GHz guest network * 1
5 GHz guest network * 1

Certification

FCC, RoHS

Package Contents

Deco M9 Plus (2-pack):
2 x Deco units
1 x RJ45 Ethernet Cable
2 x Power Adapters

Smartphone/Tablet Requirements

iOS 9.0 or later
Android 4.4 or later
Bluetooth 4.0 or later

Environment

Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
