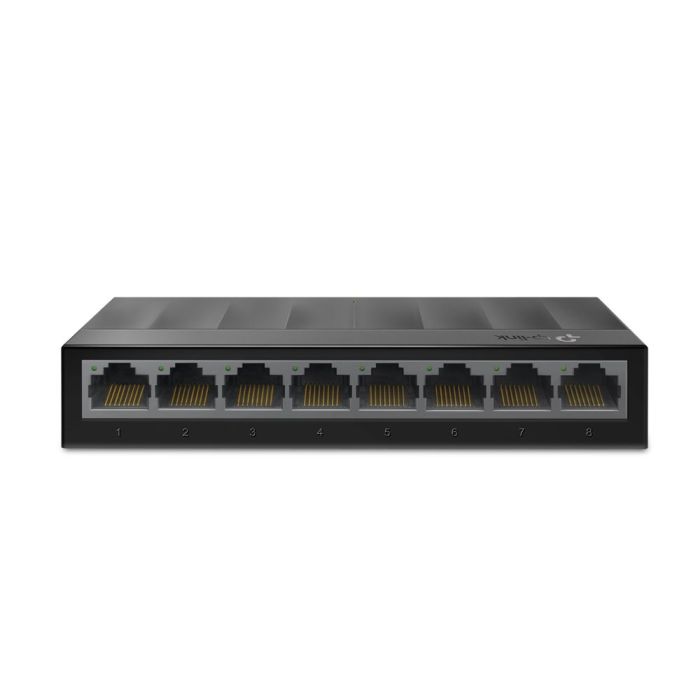

TPLINK LS1008G 8-PORT GIGABIT DESKTOP SWITCH (PLASTIC CASE)

Standards and Protocols

IEEE 802.3i/802.3u/ 802.3ab/802.3x

Interface

8× 10/100/1000Mbps, Auto-Negotiation,
Auto-MDI/MDIX Ports

Fan Quantity

Fanless

External Power Supply

External Power Adapter (Output: 9VDC / 0.6A)

Dimensions ( W x D x H )

5.0 × 2.6 × 0.9 in. (127 × 66.5 × 23 mm)

Max. Power Consumption

3.9W

Max. Heat Dissipation

13.299 BTU/h

Switching Capacity

16 Gbps

Packet Forwarding Rate

11.9 Mpps

MAC Address Table

4K

Packet Buffer Memory

1.5 Mb

Jumbo Frame

16 KB

Advanced Features

Green Technology
802.3X Flow Control
Back Pressure

Transmission Method

Store and Forward

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40?~60? (-40?~140?)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing

Package Content

8-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide

Certifications

CE, FCC, RoHS
