WPS Button, Reset Button, LED Button, Power Button
Power Consumption
12W?max power consumption?
Dimensions ( W x D x H )
6.4x 3.4 x 1.6 in. (163 x 86 x 40mm)
Antenna
4x external
Frequency
2.4GHz & 5GHz(11ac)
Signal Rate
5GHz: Up to 1733Mbps 2.4GHz: Up to 800Mpbs
Reception Sensitivity
5GHz? 11a 6Mbps: -96dBm@10% PER 11a 54Mbps: -78dBm@10% PER 11ac HT20 mcs8: -69dBm@10% PER 11ac HT40 mcs9: -66dBm@10% PER 11ac HT80 mcs9: -63dBm@10% PER 2.4GHz 11g 54M: -79dBm@10% PER 11n HT20 mcs7: -77dBm@10% PER 11n HT40 mcs7: -74dBm@10% PER
Wireless Modes
Range Extender/Access Point
Wireless Functions
Wireless Statistic Concurrent Mode boost both 2.4G/5G WiFi band High Speed Mode for great speed for HD Gaming and video Access Control LED Control Domain Login Function
Wireless Security
64/128-bit WEP WPA-PSK / WPA2-PSK
Transmission Power
<20dBm(2.4GHz) <23dBm(5GHz)
Certification
FCC, RoHS
Package Contents

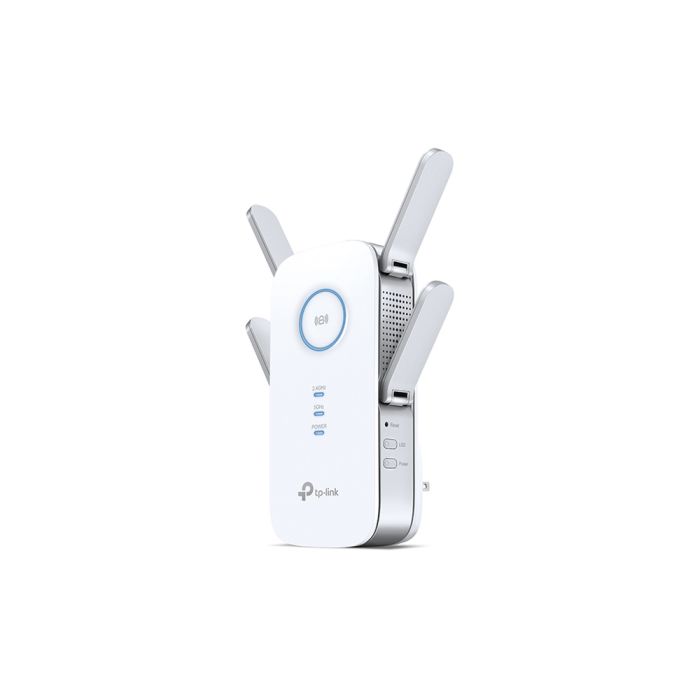

AC2600 Wi-Fi Range Extender RE650 Quick Installation Guide
Box Dimensions (W X D X H)
7.9 x 4.9 x 3.8in. (202x 125 x 97mm)
System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, 10, Mac® OS, NetWare®, UNIX® or Linux.
