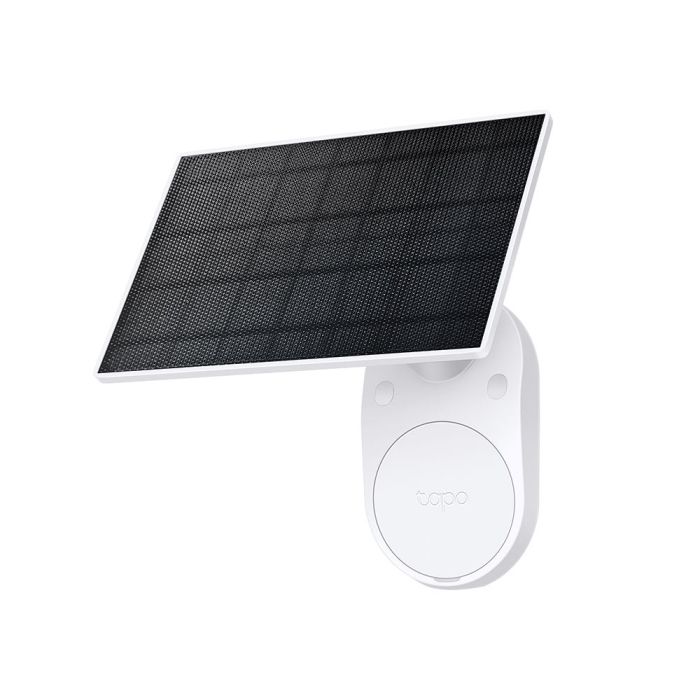

TPLINK TAPO A201 SOLAR PANEL

Device Compatibility

Works with Tapo C400, Tapo C410, Tapo C420, Tapo C425, Tapo C460, TC85, TC82, Tapo C420S2, Tapo C400S2, Tapo D210, Tapo C425, Tapo C420S1 V1.2 & Tapo C420 V1.2

Connection Capacity

A solar panel can only connect to one camera

Output Port

Type-C

*A Type-C to Micro USB adapter (Included) is required for a camera with a Micro USB charging port.

Power Source

Sunlight

Output Voltage

Solar Panel Max Charging Voltage: 5.2 V
Solar Panel Max Charging Power: 2.5 W

Power Cord Length

Solar Panel Charging Cable Length: 0.25m
Solar Panel Extension Charging Cable Length: 3.8m

Weather Resistance

IP65

Mounting Options

Wall-Mounted?

Operating Temperature

-20°C~45°C (-4°F~113°F)

*The suitable temperature for Tapo A201 is -20?~45?. The working temperature range for battery charging should be maintained at 0?~45?.

Dimensions (W x D x H)

6.31 x 3.89 x 3.28 in.
(160.20*98.82*83.21)mm

Storage Temperature

-40?~60? (-40°F~140°F)

Operating Humidity

10%~90% RH, Non-condensing

Storage Humidity

5%~90% RH, Non-condensing

Dimensions ( W x D x H )

173.42 × 120.42 × 15.7 mm (6.83 × 4.74 × 0.62 in)

Package Content

Tapo A201 Solar Panel ×1
Adjustable Mounting Bracket ×1
Mounting Screws ×6
Mounting Anchors ×6
Base Cover ×1
Waterproof Gaskets ×6
Screw Caps ×2
Cable Zip Tie×1
Extension Wire ×1
Type-C to Micro USB Adapter ×1
Mounting Template ×2
Quick Start Guide

Certifications

CE, FCC, RoHS, RCM
