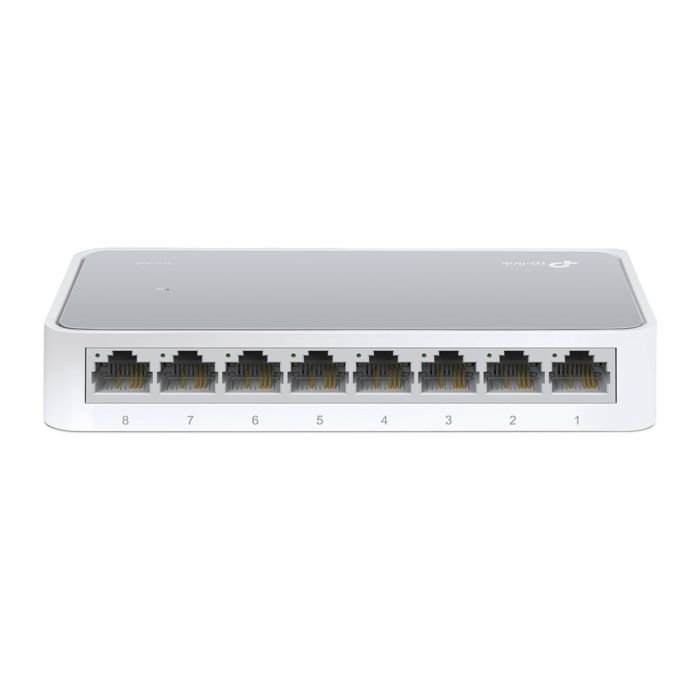

TPLINK TL-SF1008D 8-PORT 10/100M MINI SWITCH PLASTIC CASE

Standards and Protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3x
CSMA/CD

Interface

8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX

Fan Quantity

Fanless

Power Supply

External Power Adapter(Output: 5.0VDC / 0.6A)

External Power Supply

100-240VAC, 50/60Hz

Buffer Size

768Kb

Data Rates

10/100Mbps at Half Duplex ;
20/200Mbps at Full Duplex

LED Indicator

Power, 1, 2, 3, 4, 5, 6, 7, 8

Dimensions ( W x D x H )

5.3*3.1*0.9 in. (134.5*79*22.5mm)

Max Power Consumption

2.05W(220V/50Hz)

Max Heat Dissipation

6.99BTU/h

Transfer Method

Store and Forward

Advanced Functions

Green Technology
802.3X Flow Control, Back Pressure
