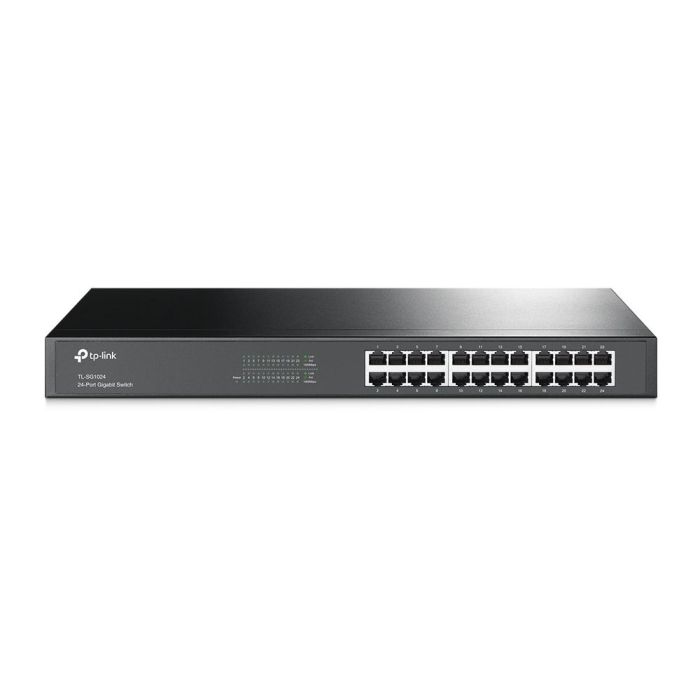

TPLINK TL-SG1024 24-PORT GIGABIT SWITCH, 19-INCH RACK-MOUNTABLE (STEEL CASE)

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x

Interface

24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity

Fanless

Physical Security Lock

No

Power Supply

100-240VAC, 50/60Hz

Dimensions ( W x D x H )

17.3*7.1*1.7 in. (440*180*44 mm)

Mounting

Rack Mountable

Max. Power Consumption

13.62W

Max. Heat Dissipation

46.44BTU/h

Switching Capacity

48Gbps

Packet Forwarding Rate

35.7Mpps

MAC Address Table

8K

Advanced Features

• Isolation Mode: Ports 1-22
• Loop Prevention: Ports 1-24

Jumbo Frame

10KB

QoS

802.1p/DSCP QoS*
*Only for V11 and later version

Green Technology

Yes

Transmission Method

Store and Forward

Environment

Operating Temperature: 0?~40? (32?~104?);
Storage Temperature: -40?~70? (-40?~158?);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing

Package Content

24-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet

Certifications

FCC, CE, RoHS
