SKU
TPLINK-278
In stock

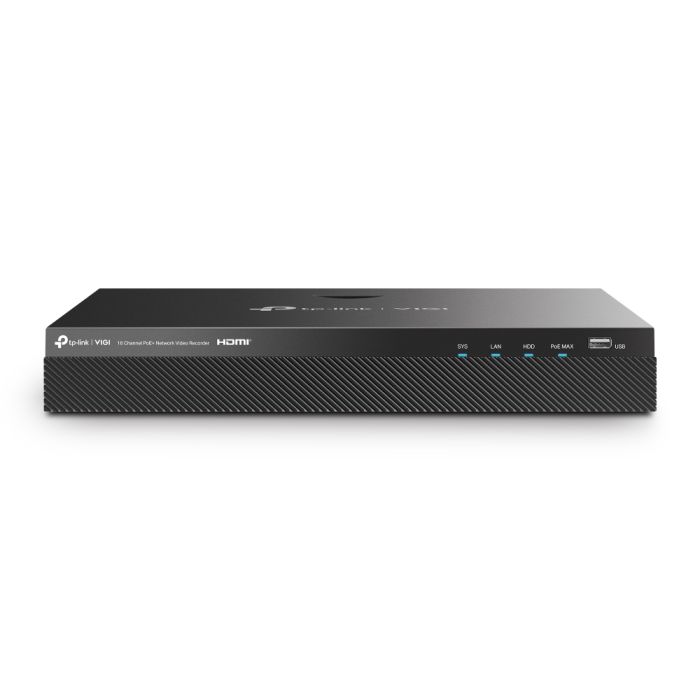

TPLINK VIGI NVR2016H-16MP 16 CHANNEL POE+ NETWORK VIDEO RECORDER
VIGI 16 Channel PoE+ Network Video Recorder
BND 368.00
- 4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP, and 8-ch@2MP† decoding capacity allows you to enjoy more-channels live view and playback at the same time.
- 140 W PoE Budget: 16× 802.3af/at-compliant PoE+ ports with a total power supply of 140 W.‡
- 16-Channel Simultaneous Playback*: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
- 265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
- ONVIF Ensures Compatibility: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
- Auto Initialize for Quick Configuration: Just click "Auto Initialize" to set up basic IPC and hard disk parameters, significantly reducing your configuration time.
- 24/7 Continuous Recording: Stores up to 32 TB of footage (1048 storage days***) from connected cameras to secure your data for quick, convenient access.
- Two-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you are.
- Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience.
|
IP Video Input |
16-Channel |
|
Incoming Bandwidth |
80 Mbps |
|
Outgoing Bandwidth |
60 Mbps |
|
HDMI Output Resolution |
1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
|
VGA Output Resolution |
1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
|
Video Output Mode |
HDMI/VGA Simultaneous Output |
|
Multi-View Display |
1/4/6/8/9/16 |
|
Audio Compression |
G.711A/G.711U/G.726 |
|
Video Compression |
H.265+/H.265/ H.264+/H.264 |
|
Record Resolution |
8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Synchronous Playback |
16-Channel |
|
Capability |
• 25fps: • 30fps: |
|
Record Mode |
• Manual Recording |
|
Playback Mode |
• Instant Playback |
|
Backup Mode |
• Regular Backup |
|
Playback Function |
• Play |
|
Protocol |
UPnP (Plug and Play), NTP (Network Timing) |
|
Mobile Phone Access |
Android, iOS |
|
Web Browser |
Chrome (57+), Firefox (52+), Edge (91+) |
|
Interoperability |
ONVIF, CGI |
|
Network Interface |
1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
|
USB Interface |
1 Front USB 2.0 Port, 1 Rear USB 2.0 Port |
|
Audio Interface |
1, Audio In; 1, Audio Out |
|
Alarm In/Out |
N/A |
|
Serial Interface |
N/A |
|
Power |
1× DC Jack |
|
Reset Button |
1 |
|
Speaker |
N/A |
|
eSATA |
1 |
|
HDMI |
1 |
|
VGA |
1 |
|
SATA |
2 SATA Interface |
|
Capacity |
Up to 16 TB Capacity for Each HDD |
|
Standard |
802.3at/af Compliant |
|
Interface |
1-16, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
|
PoE Budget |
140 W Available for All PoE+ Ports, 30 W Max per Port |
|
General Alarm |
• Motion Detection |
|
Anomaly Alarm |
• Video Loss |
|
Alarm Linkage |
• Recording |
|
Package Content |
• VIGI Network Video Recorder |
|
Dimensions( W X D X H ) |
330 × 285 × 45 mm |
|
Net Weight |
2.1 Kg |
