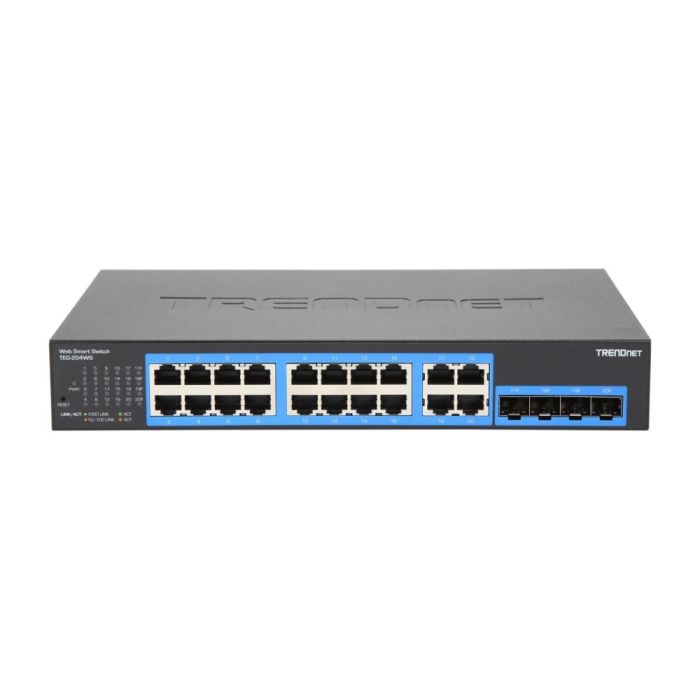

TRENDNET TEG-204WS 20-PORT 10/100/1000MBPS GIGABIT WEB SMART SWITCH

Standards

·         IEEE 802.1d

·         IEEE 802.1p

·         IEEE 802.1Q

·         IEEE 802.1s

·         IEEE 802.1w

·         IEEE 802.1X

·         IEEE 802.1ab

·         IEEE 802.3

·         IEEE 802.3u

·         IEEE 802.3x

·         IEEE 802.3z

·         IEEE 802.3ab

·         IEEE 802.3ad

·         IEEE 802.3az

Device Interface

·         16 x Gigabit ports

·         4 x shared Gigabit ports (RJ-45/SFP)

·         LED indicators

Data Transfer Rate

·         Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)

·         Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)

·         Gigabit Ethernet: 2000Mbps (full duplex)

Performance

·         Switch fabric: 40Gbps

·         RAM buffer: 512KB

·         MAC Address Table: 8K entries

·         Jumbo Frames: 10KB

·         HOL Blocking Prevention

·         Forwarding rate: 29.8Mpps (64-byte packet size)

Management

·         HTTP/HTTPS (SSL v2/3 TLS) Web based GUI

·         SNMP v1, v2c, v3

·         RMON v1

·         Static Unicast MAC Address

·         Enable/disable 802.3az Power Saving

·         LLDP and LLDP-MED

·         Virtual Cable Diagnostics Test

·         IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration

MIB

·         IP FORWARD TABLE MIB RFC 1354

·         RMON MIB RFC 1271

·         IPV4 MIB RFC 1213

·         IPV6 MIB RFC 2465

·         GVRP MIB IEEE 802.1Q-VLAN

·         LA MIB IEEE 802.3ad

·         LLDP MIB IEEE 802.1AB

·         IGMP SNOOPING MIB RFC 2933

·         MLD SNOOPING MIB RFC 3019

·         PRIVATE VLAN MIB IEEE 802.1Q

·         DHCPSNOOP MIB RFC 2026

·         QOS MIB RFC 4323

·         SNMP MIB RFC 3415

·         STP MIB RFC 4318

·         PNAC MIB IEEE 802.1x

·         VLAN MIB IEEE 802.1q

·         DNS MIB RFC 1611

·         ACL MIB

·         BANDWIDTH CTRL MIB

·         LBD MIB

·         MIRROR MIB

·         IPV6 NEIGHBOR MIB

·         SNTP MIB

·         STORM CTRL MIB

·         STATISTICS MIB

·         Tool MIB

·         VOICE VLAN MIB

·         DOS MIB

Spanning Tree

·         IEEE 802.1D STP (Spanning Tree protocol)

·         IEEE 802.1w RSTP (Rapid Spanning Tree protocol)

·         IEEE 802.1s MSTP (Multiple Spanning Tree protocol)

Link Aggregation

·         Static Link Aggregation

·         802.3ad Dynamic LACP

Quality of Service (QoS)

·         802.1p Class of Service (CoS)

·         DSCP (Differentiated Services Code Point)

·         Bandwidth Control per port

·         Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)

VLAN

·         Multiple management VLAN assignment

·         Asymmetric VLAN

·         802.1Q Tagged VLAN

·         Dynamic GVRP

·         Up to 256 VLAN groups, ID Range 1-4094

·         Private VLAN (Protected Ports)

·         Voice VLAN (10 user defined OUIs)

Multicast

·         IGMP Snooping v1, v2, v3 (per VLAN)

·         Static Multicast Address

·         Up to 256 multicast entries

Port Mirror

·         RX, TX, or Both

·         One to one

Encryption

·         802.1X Port-Based Network Access Control , RADIUS, TACACS+

·         Local Dial In User Authentication

·         DHCP Snooping (per VLAN)

·         Loopback Detection

·         Duplicated Address Detection

·         Trusted Host

·         Denial of Service (DoS)

ACL IPv4 L2-L4 & IPv6

·         MAC Address

·         VLAN ID

·         Ether Type (IPv4 only)

·         IP Protocol 0-255

·         TCP/UDP Port 1-65535

·         802.1p

·         DSCP (IPv4 only)

·         IPv6 Address (IPv6 only)

Compatibility

·         Optional Software Utility: Windows^® 10, 8.1, 8, 7, Vista, XP, Windows^® 2003/2008 Server

Special Features

·         Fanless Design

·         IPv6

·         802.3az power saving

·         Rack mountable

Power

·         Input: 100 - 240V AC, 50/60Hz, internal power supply

·         Consumption: 14.6 Watts (max.)

MTBF

·         836,519 hours

Operating Temperature

·         -5 – 50°C (23 - 122°F)

Operating Humidity

·         Max. 95% non-condensing

Dimensions

·         280 x 180 x 44mm (11 x 7 x 1.74 in.)

·         Rack mountable 1U height

Weight

·         1.76kg (3.88 lbs.)

Certifications

·         CE

·         FCC

·         UL

Package Contents

TEG-204WS

Quick Installation Guide

CD-ROM (Utility & User's Guide)

Power cord (1.8m/6 ft.)

Rack mount kit
