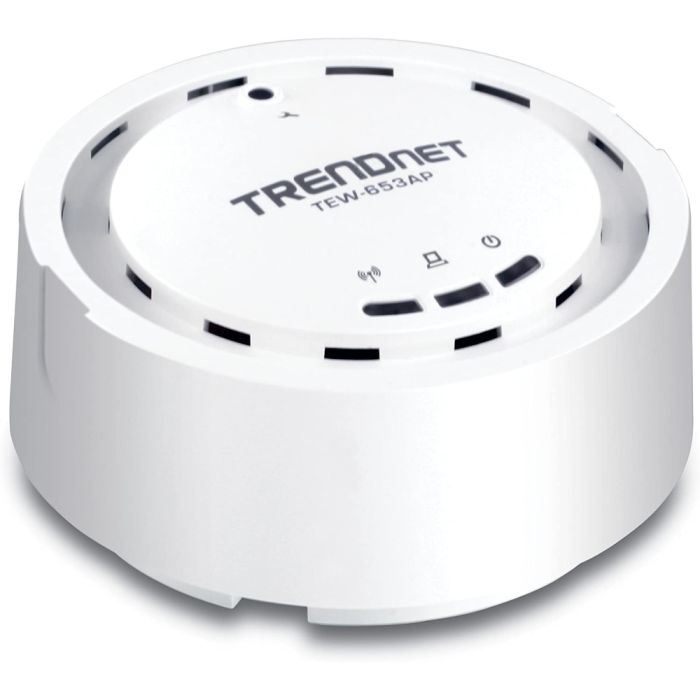

TRENDNET TEW-653AP N300 WIRELESS PoE ACCESS POINT

HARDWARE

Standards

·         IEEE 802.3 (10Base-T)

·         IEEE 802.3u (100Base-TX)

·         IEEE 802.11b

·         IEEE 802.11g

·         IEEE 802.11n

·         IEEE 802.3af

Interface

·         1 x 10/100Mbps Auto-MDIX PoE LAN port

LED Indicators

·         Power/Status, LAN, WLAN

Button

·         Reset button – restores factory default settings

Power Supply

·         Active Ethernet (Power over Ethernet, IEEE802.3af )-48VDC/0.375A

·         Power adapter 12V/1A

Power Consumption

·         6 watts (max)

Dimensions (Diameter x Height)

·         120mm x 50mm (4.72 x 1.97in.)

Weight

·         280g (9.87oz)

Temperature

·         Operating: 0° ~ 45°C (32° ~ 113°F)

·         Storage: -20°C ~ 70°C (-4° ~ 158° F)

Humidity

·         5% ~ 95% typical (non-condensing)

Certifications

·         CE, FCC

WIRELESS

Module Technique

·         OFDM: BPSK, QPSK, 16-QAM, 64-QAM

·         DBPSK, DQPSK, CCK

Modes

·         Access Point, WDS Bridge, Repeater

Antenna

·         4dBi Smart Internal Antenna

Frequency

·         2.412 ~ 2.472 GHz

Management

·         Web browser (HTTP); SNMP v1, v2c

Data Rate (Auto Fallback)

·         802.11n: up to 300Mbps

·         802.11g: up to 54Mbps

·         802.11b: up to 11Mbps

Output Power

·         802.11n: 18dBm (typical) @ 300Mbps

·         802.11g: 18dBm (typical) @ 54Mbps

·         802.11b: 17dBm (typical) @ 11Mbps

Receiving Sensitivity

·         802.11n: -61dBm

·         802.11g: -72dBm

·         802.11b: -89dBm

Encryption

·         64/128 bit WEP, WPA-PSK/WPA2-PSK, WPA/WPA2-RADIUS

Channels

·         1-11 (FCC), 1-13 (ETSI)

Package Contents

TEW-653AP

Multi-Language Quick Installation Guide

CD-ROM (User's Guide)

Power adapter (12V DC, 1A)

Mounting kit
