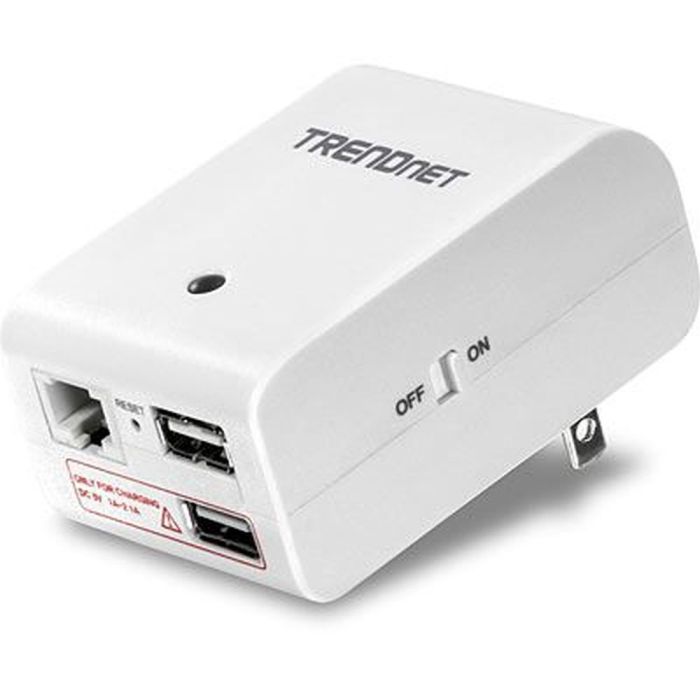

TRENDNET TEW-714TRU N150 WIRLESS TRAVEL ROUTER (^^)

standards

USB 2.0

USB 1.1

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3az

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n (up to 150 Mbps)

Encryption

Wireless encryption up to WPA2

Device Interfaces

1 x USB quick charge port

1 x USB file share port

1 x 10/100 Mbps port

On/off power switch

Router/Repeater/WISP mode selection switch

WPS button

Reset button

LED indicator

Interchangeable Power plugs: US, EU, UK

Special Features

Compact form factor

Router, WISP, and Repeater modes

USB file share port

USB quick charge port (Max. 5 V DC 2.1 A)

Interchangeable Power plugs: US, EU, UK

Power

100 - 240 V AC

Consumption: 2.5 W (Max.)

Antenna Gain

2 dBi internal PIFA

Wireless Output Power (EIRP)/Receiving Sensitivity

802.11b: FCC: 20 dBm (typical), CE: 20 dBm (typical)/-82 dBm (typical) @ 11 Mbps

802.11g: FCC: 17 dBm (typical), CE: 17 dBm (typical)/-70 dBm (typical) @ 54 Mbps

802.11n: FCC: 16 dBm (typical), CE: 16 dBm (typical)/-70 dBm (typical) @ 150 Mbps

Operating Temperature

0 - 40°C (32 - 104°F)

Operating Humidity

Max. 90% non-condensing

Certifications

CE

FCC

Dimensions

81 x 50 x 39 mm (3.2 x 2.0 x 1.5 in.)

Weight

120 g (4.2 oz.)
