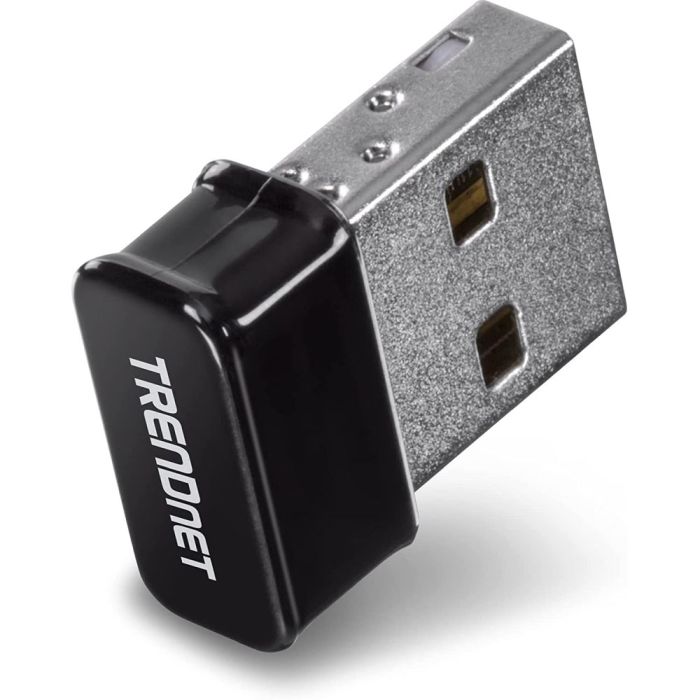

TRENDNET TEW-808UBM AC1200 MICRO WIRELESS USB ADAPTER

Standards

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n (up to 300Mbps)

IEEE 802.11ac (up to 867Mbps)

Hardware Interface

USB 2.0 LED Indicator

Special Features

High-speed 802.11ac connectivity

Explicit Beamforming

Supports MU-MIMO technology

Compatibility

Windows® 10, 8.1, 8, 7

Mac OS® 10.9 – 10.12

Data Rate

802.11a: up to 54Mbps

802.11b: up to 11Mbps

802.11g: up to 54Mbps

802.11n: up to 300Mbps (2.4GHz & 5GHz) 802.11ac: up to 867Mbps

Encryption

64/128-bit WEP, WPA / WPA2-Enterprise, WPA / WPA2-PSK (AES/TKIP)

Frequency

2.400 – 2.483GHz

5.150 – 5.825GHz

Modulation

802.11b: CCK, DQPSK, DBPSK

802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM

802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM

802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM

Antenna

 2.4GHz / 5GHz: 2 x 1 dBi (max.) dual band internal

Output Power

802.11a: 8.5 dBm (max.) @ 54Mbps

802.11b: 9.5 dBm (max.) @ 11Mbps

802.11g: 8.5 dBm (max.) @ 54Mbps

802.11n: 7.5 dBm (max.) (2.4GHz & 5GHz) @ 300Mbps

802.11ac: 5.5 dBm (max.) @ 867Mbps

Receiving Sensitivity

802.11a: -70 dBm (typical) @ 54Mbps

802.11b: -81 dBm (typical) @ 11Mbps

802.11g: -70 dBm (typical) @ 54Mbps

802.11n (2.4GHz): -68 dBm (typical) @ 300Mbps

802.11n (5GHz): -67 dBm (typical) @ 300Mbps

802.11ac: -54 dBm (typical) @ 867Mbps

Wireless Channels

2.4GHz: FCC: 1-11; ETSI: 1-13

5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165; ETSI: 36, 40, 44, 48, (52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140)**

Power

 Consumption: Max. 0.98W

Operating Temperature

 0° – 40° C (32° – 104° F)

Operating Humidity

 Max. 90% non-condensing

Dimensions

 20 x 15 x 7mm (0.8 x 0.6 x 0.3 in.)

Weight

 2g (0.07 oz.)

Certifications

 CE FCC IC
