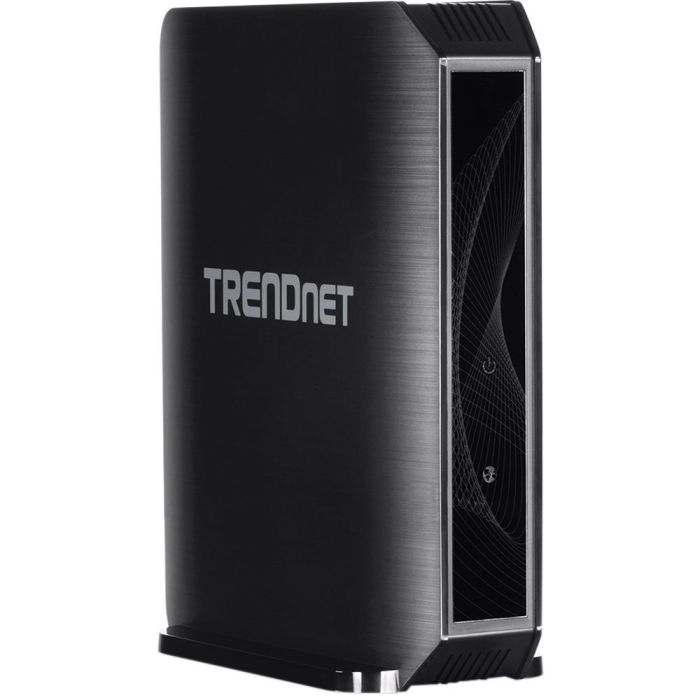

TRENDNET TEW-824DRU AC1750 DUAL BAND WIRELESS AC ROUTER W/STREAMBOOST (^^)

Standards

IEEE 802.3

IEEE 802.3u

IEEE 802.3x

IEEE 802.3ab

IEEE 802.3az

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n (2.4 GHz 450 Mbps, 5 GHz up to 450 Mbps)

IEEE 802.11ac (up to 1300 Mbps)

Hardware Interface

4 x Gigabit LAN ports

1 x Gigabit WAN port

1 x USB 2.0 (Storage FTP, Samba)

Power switch

WPS button

Reset button

LED indicators

Special Features

StreamBoost™ automatically identifies and classifies network traffic to maximize bandwidth and speed

Multi-Language interface: English, French, Spanish, German, Russian

Pre-encrypted wireless network

IPv6 support

1 guest network per band with option for internet access only

Up to 2 additional SSIDs per band

Dynamic DNS support for dyn.com, no-ip.com, and easydns.com

Samba/FTP server support

Implicit and Explicit Beamforming

Access Control

Wireless encryption up to WEP, WPA/WPA2-PSK, WPA/WPA2-RADIUS

Firewall: NAT, SPI, Virtual Server, Special Applications, Gaming, DMZ Host, allow/deny ping request from internet

ALG: PPTP/L2TP/IPsec VPN Passthrough, TFTP/FTP/RTSP/SIP/H.323 Passthrough

Parental (Access) Controls: MAC, URL, IP Filter

Quality of Service

WMM

StreamBoost™ Traffic Shaping

Internet Connection Types

Dynamic IP (DHCP)

Static IP (Fixed)

PPPoE (Dynamic IP/Static IP)

PPTP (Dynamic IP/Static IP)

L2TP(Dynamic IP/Static IP)

Russia PPPoE (Dynamic IP/Static IP)

Russia PPTP (Dynamic IP/Static IP)

Russia L2TP (Dynamic IP/Static IP)

IPv6 (Static, Auto-configuration (SLAAC/DHCPv6), Link-Local, PPPoE, 6to4)

Management/Monitoring

Local/remote web based management

Upgrade firmware

Backup/restore configuration

Internal logging

Reboot

Restore to factory defaults

Ping test

Routing

Static

Dynamic (RIP v1/2)

Frequency

2.412 - 2.472 GHz

5.180 – 5.825 GHz

Modulation

802.11b: CCK, DQPSK, DBPSK

802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM

802.11n: BPSK, QPSK, 16-QAM, 64-QAM with OFDM

802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM

Media Access Protocol

CSMA/CA with ACK

Antenna Gain

2.4 GHz: 3 x 2 dBi (max.) internal; 5 GHz: 3 x 3 dBi (max.) internal

Wireless Output Power

802.11a: FCC: 25 dBm (max.)/ETSI: 25 dBm (max.) / IC: 26 dBm (max.) @ 54 Mbps

802.11b: FCC: 23 dBm (max.) / ETSI: 21 dBm (max.) / IC: 23 dBm (max.) @ 11 Mbps

802.11g: FCC: 27 dBm (max.) / ETSI: 20 dBm (max.) / IC: 27 dBm (max.) @ 54 Mbps

802.11n (2.4 GHz): FCC: 27 dBm (max.) / ETSI: 20 dBm (max.) / IC: 27 dBm (max.) @ 450 Mbps

802.11n (5 GHz): FCC: 25 dBm (max.) / ETSI: 25 dBm (max.) / IC: 26 dBm (max.) @ 450 Mbps

802.11ac: FCC: 25 dBm (max.) / ETSI: 25 dBm (max.) / IC: 26 dBm (max.) @ 1300 Mbps

Receiving Sensitivity

802.11a: -65 dBm (typical) @ 54 Mbps

802.11b: -83 dBm (typical) @ 11 Mbps

802.11g: -65 dBm (typical) @ 54 Mbps

802.11n (2.4 GHz): -61 dBm (typical) @ 450 Mbps

802.11n (5 GHz): -61 dBm (typical) @ 450 Mbps

802.11ac: -51 dBm (typical) @ 1300 Mbps

Wireless Channels

2.4 GHz: FCC: 1-11; ETSI: 1-13

5 GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165; ETSI: 36, 40, 44, 48, (52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140)**

Power

Input: 100 – 240 V AC, 50 - 60 Hz, 0.8 A

Output: 12 V DC, 2 A external power adapter

Consumption: 18 Watts max.

Operating Temperature

0 – 40 °C (32 – 104 °F)

Operating Humidity

Max. 95% non-condensing

Certifications

CE

FCC

Dimensions

72 x 151 x 191 mm (2.8 x 6.0 x 7.5 in.)

Weight

408 g (14.4 oz.)
