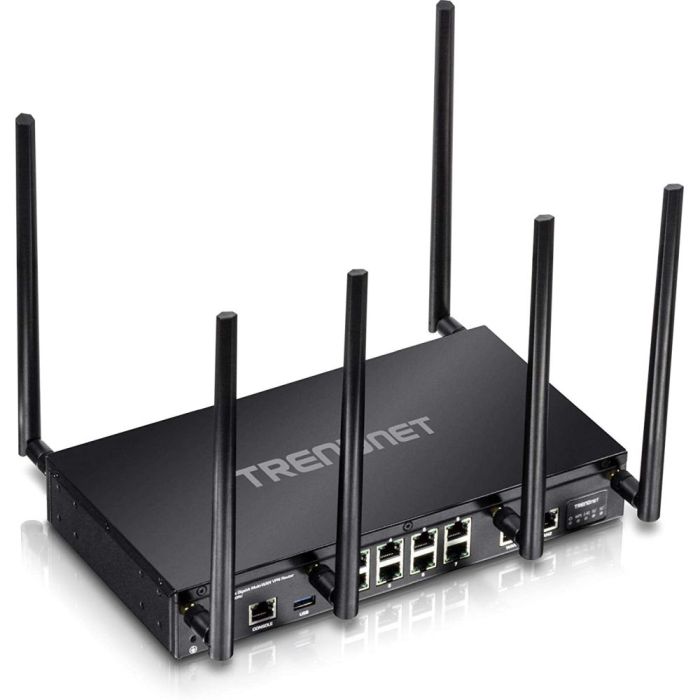

TRENDNET TEW-829DRU AC3000 TRI-BAND WIRELESS GIGABIT DUAL-WAN VPN SMB ROUTER

Standards

·         IEEE 802.3

·         IEEE 802.3u

·         IEEE 802.3x

·         IEEE 802.3ab

·         IEEE 802.1Q

·         IEEE 802.1X

·         IEEE 802.11a

·         IEEE 802.11b

·         IEEE 802.11g

·         IEEE 802.11n (up to 400 Mbps @ 256QAM)*

·         IEEE 802.11ac (5GHz1: up to 1733 Mbps, 5GHz2: up to 867 Mbps @ 256QAM)*

Device Interface

·         8 x Gigabit LAN ports

·         2 x Gigabit WAN ports (WAN failover / Load balancing)

·         1 x USB 3.0 (Samba)

·         1 x RJ-45 console port

·         Power switch

·         Reset button

·         LED indicators

Performance

·         NAT (LAN-to-WAN) throughput: 900Mbps

·         Routing performance: 900Mbps

·         Maximum concurrent sessions: 32,000

·         Maximum number of VLANs: 8 (ID: 1-4094)

·         IPsec VPN (AES-256/SHA-256/LAN-to-LAN) throughput: 90Mbps

·         SSL VPN (OpenVPN®) Throughput (Blowfish/SHA-1/Bridge): 15Mbps

VPN

·         SSL VPN Server (Up to 10 tunnels)

·         OpenVPN Encryption: BF-CBC, AES-128-CBC, AES-256-CBC

·         OpenVPN HMAC Authentication: SHA1, SHA256

·         SSL VPN Certificate: RSA

·         IPsec VPN Server / Site-to-Site (Up to 15 tunnels)

·         IPsec Encryption: DES, 3DES, AES-128/256

·         IPsec Authentication: MD5, SHA1, SHA2-256, Certificate: X.509v3

·         IPsec Key Exchange: IKE: IKEv1/2, Main Mode, Pre-shared Key, DH Groups 1/2/5/14

·         IPsec Protocols: ESP (Transport/Tunnel), PFS DH Groups 1/2/5/14, DPD, Local/Remote ID: IP Address, FQDN

·         IPsec NAT Traversal

·         IPsec VPN failover support

·         PPTP/L2TP VPN Server (Up to 10 tunnels)

·         L2TP with IPsec VPN Server (Up to 8 tunnels shared with L2TP)

·         PPTP/L2TP Encryption: MPPE 40-bit, 128-bit, IPsec

·         PPTP/L2TP Authentication: MS-CHAPv1/2

Networking

·         WAN Modes: NAT, Classical Routing

·         NAT Modes: NAT, PAT, One-to-One NAT

·         WiFi client bridge mode

·         ISP IPv4 WAN Modes: DHCP, Static IP, PPPoE, PPTP, L2TP

·         ISP IPv6 WAN Modes: Static, Auto-configuration (SLAAC/DHCPv6), Link-Local, PPPoE

·         VLAN ID assignment on WAN interface

·         Routing: Static, RIPv1/v2, OSPFv/2, routing policies (Up to 20 entries)

·         Static ARP (Up to 32 entries)

·         Inter-VLAN Routing (Up to 8 VLANs, 8 IP interfaces)

·         SSID per VLAN assignment

·         DHCP Server/Relay

·         Dynamic DNS: dyn.com, no-ip.com

·         WAN Failover

·         WAN Load Balancing

·         VPN passthrough: IPsec, PPTP, L2TP

Access Control

·         Wireless encryption: WPA/WPA2-PSK, WPA/WPA2-RADIUS

·         NAT, virtual server/port forwarding, port triggering, firewall traffic rules, DMZ host, UPnP/NAT-PMP, allow/deny ping on WAN interfaces

·         ALG: PPTP/L2TP/IPsec VPN passthrough, FTP/TFTP/SIP/RTSP/IRC/H.323 passthrough

·         MAC & IP filtering

·         Custom scheduling for access control rules

·         Wireless client isolation

·         DoS prevention

Quality of Service

·         User defined classification rules with 4 priority queues

·         WMM

Management/Monitoring

·         CLI (Console/Telnet/SSH) command line management

·         HTTP/HTTPS web based management

·         Scheduled automatic reboot

·         Scheduled Wake-on-LAN (WoL)

·         View ARP and routing table entries

·         View CPU load, traffic/wireless usage, and NAT sessions

·         Internal system logging

·         Manual or online firmware upgrade and notification

·         Backup and restore configuration

·         Internal logging

·         Ping watchdog

·         Diagnostic tools: Built-in ping, traceroute, and ns-lookup network utilities

Frequency

·         2.412 - 2.472 GHz

·         5.180 – 5.825 GHz

Modulation

·         802.11b: CCK, DQPSK, DBPSK

·         802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM

·         802.11n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM with OFDM

·         802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM

Media Access Protocol

·         CSMA/CA with ACK

Antenna Gain

·         2.4 GHz: 2 x 2.9 dBi (max.) / 5 GHz: 4 x 4.4 dBi detachable/external

Wireless Output Power (max output power without antenna gain)

·         802.11a: FCC: 25 dBm (max.) / IC: 23 dBm (max.)

·         802.11b: FCC: 26 dBm (max.) / IC: 26 dBm (max.)

·         802.11g: FCC: 23 dBm (max.) / IC: 23 dBm (max.)

·         802.11n (2.4 GHz): FCC: 23 dBm (max.) / IC: 23 dBm (max.)

·         802.11n (5 GHz): FCC: 23 dBm (max.) / IC: 23 dBm (max.)

·         802.11ac: FCC: 23dBm (max.) / IC: 23dBm (max.)

Receiving Sensitivity (per chain)

·         802.11a: -70 dBm (typical) @ 54 Mbps

·         802.11b: -83 dBm (typical) @ 11 Mbps

·         802.11g: -70 dBm (typical) @ 54 Mbps

·         802.11n (2.4 GHz): -59 dBm (typical) @ 400 Mbps

·         802.11n (5 GHz): -59 dBm (typical) @ 800 Mbps

·         802.11ac: -55 dBm (typical) @ 1733 Mbps

Wireless Channels

·         2.4 GHz: FCC: 1-11

·         5 GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165

Power

·         Input: 100 – 240 V AC, 50 - 60 Hz, 1A

·         Output: 12V DC, 3A external power adapter

·         Consumption: 17.4W (max.)

Operating Temperature

·         0 – 50 °C (32 – 122 °F)

Operating Humidity

·         Max. 95% non-condensing

Certifications

·         FCC

·         IC

Dimensions

·         280 x 170 x 44.45 mm (11 x 6.7 x 1.75 in.)

·         Rack mountable 1U height

Weight

·         1.24 kg (2.74 lbs.)
