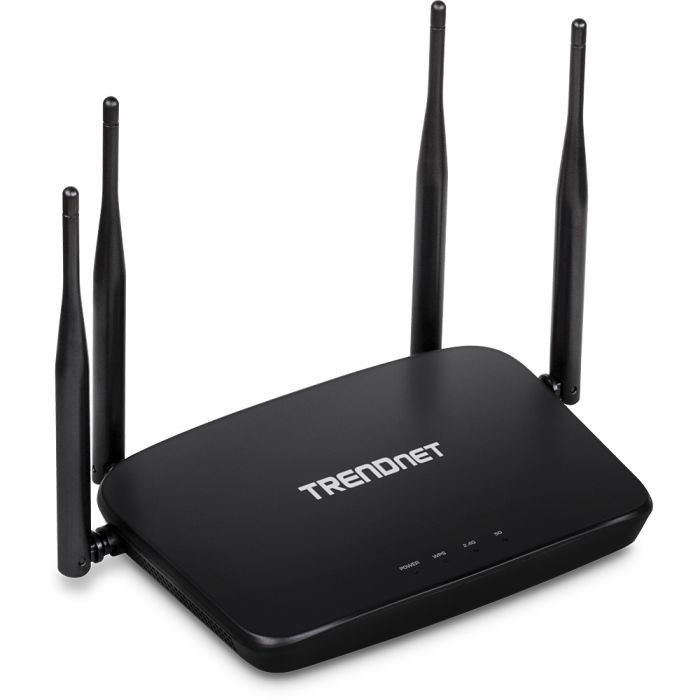

TRENDNET TEW-831DR AC1200 DUAL BAND WIFI ROUTER

Standards

·         IEEE 802.3

·         IEEE 802.3u

·         IEEE 802.3ab

·         IEEE 802.1Q

·         IEEE 802.1p

·         IEEE 802.11a

·         IEEE 802.11b

·         IEEE 802.11g

·         IEEE 802.11n (up to 300Mbps)*

·         IEEE 802.11ac (up to 867Mbps)*

Device Interface

·         3 x 10/100Mbps LAN ports

·         1 x Gigabit WAN port

·         WPS/Reset button

·         LED indicators

Special Features

·         IEEE 802.1Q tagged-based VLAN

·         Bandwidth controls

·         MU-MIMO

·         4 x 5 dBi dual band antennas

·         IPv6 support

·         Multi-Language interface: English, Spanish, French, German, Russian/Portuguese

·         Pre-encrypted wireless network

·         TR-069

Access Control

·         Wireless encryption: 64/128-bits WEP; WPA/WPA2

·         NAT, virtual server/port forwarding, port triggering, firewall traffic rules, DMZ host, UPnP/NAT-PMP, allow/deny ping on WAN interface

·         ALG: PPTP/L2TP/IPsec VPN passthrough, FTP/TFTP/SIP/RTSP/IRC/H.323 passthrough

·         MAC, IP, Domain name, Application filtering

·         Wireless client isolation

·         DoS prevention

Quality of Service

·         WMM

·         Management/Monitoring

·         HTTP/HTTPS web-based management

·         Internal system logging

·         Manual firmware upgrade

·         Backup and restore configuration

·         Diagnostic tools: Built-in ping and traceroute network utilities

Frequency

·         2.412 – 2.472GHz

·         5.180 – 5.825GHz

Modulation

·         802.11b: CCK, DQPSK, DBPSK

·         802.11a/g: OFDM with BPSK, QPSK and 16/64-QAM

·         802.11n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM with OFDM

·         802.11ac: OFDM with BPSK, QPSK and 16/64/256-QAM

Media Access Protocol

·         CSMA/CA with ACK

Antenna Gain

·         4 x 5 dBi Fixed Antenna

Wireless Output Power

·         802.11a: FCC: 16 dBm (max.) / IC: 16 dBm (max.)

·         802.11b: FCC: 18 dBm (max.) / IC: 18 dBm (max.)

·         802.11g: FCC: 17 dBm (max.) / IC: 17 dBm (max.)

·         802.11n (2.4GHz): FCC: 17 dBm (max.) / IC: 17 dBm (max.)

·         802.11n (5GHz): FCC: 15 dBm (max.) / IC: 15 dBm (max.)

·         802.11ac: FCC: 13 dBm (max.) / IC: 13 dBm (max.)

Receiving Sensitivity

·         802.11a: -75 dBm (typical) @ 54Mbps

·         802.11b: -90 dBm (typical) @ 11Mbps

·         802.11g: -72 dBm (typical) @ 54Mbps

·         802.11n (2.4GHz): -72 dBm (typical) @ 300Mbps

·         802.11n (5GHz): -72 dBm (typical) @ 867Mbps

·         802.11ac: -61 dBm (typical) @ 867Mbps

Wireless Channels

·         2.4GHz: FCC: 1–11

·         5GHz: FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165,

Power

·         Input: 100 – 240V AC, 50 – 60Hz, 1A

·         Output: 12V DC, 1A external power adapter

·         Max. Consumption: 5.68W

Operating Temperature

·         0° – 40° C (32° – 104° F)

Operating Humidity

·         Max. 90% non-condensing

Certifications

·         FCC

·         IC

Dimensions (L x W x H)

·         239 x 155 x 30mm (9.4 x 6.1 x 1.18 in.)

Weight

·         228g (8 oz.)

Package Cotents

TEW-831DR

Quick Installation Guide

Network cable (1.5m / 5 ft.)

Power adapter (12V DC, 1A)
