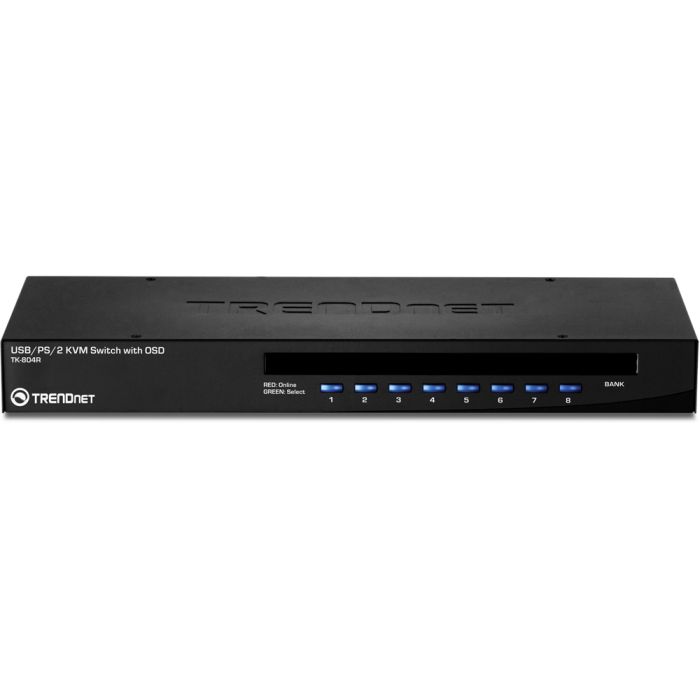

TRENDNET TK-804R 8-PORT STACKABLE RACK MOUNT USB KWM SWITCH WITH OSD

warranty (months): 24

BND 468.00

Management	8 computers
Standard	USB 1.1 compliant
PC Port	8 x VGA HDB 15-pin (female)
Console Port	· 1 x USB (type A)/ PS/2 mouse 6-pin mini din · 1 x USB (type A)/ PS/2 keyboard 6-pin mini din · 1 x VGA HDB 15-pin (female)
Supported OS	Windows 95/98(SE)/ME/ 2000/NT/XP/2003 Server/Vista Linux, Mac and more
PC Selection	Hot-key, push buttons or On Screen Display Control (OSD)
Daisy Chain	8 levels (up to 64 computers)
Auto-Scan Interval	10-100 seconds (programmable through OSD menu)
LEDs	On-line (red), select (green)
Keyboard Status	Saved & restored
Power Adapter	9V DC 1A external power adapter
Dimensions	407 x 164 x 45mm (16 x 6.5x 1.8in)
Weight	1.89kg (4.17lb.)
Temperature	· Operating: 0°C~40°C (32°F~104°F) · Storage: -20°C~60°C (-4°F~140°F)
Humidity	0%~80% (non-condensing)
Certification	CE, FCC
Package Contents	TK-804R Multi-language quick installation guide 1 x daisy-chain cable 1 x daisy-chain terminator 1 x firmware upgrade cable Power Adapter (9V DC, 1A) Rack Mount Kit

8-port stackable USB KVM switch with On Screen Display (OSD)
Console port supports both USB & PS/2 interface
Supports Microsoft IntelliMouse, IntelliMouse Explorer, Logitech NetMouse, Optical Mouse, and other MS compatible mice
Supports Windows 98SE / ME / 2000 / XP / 2003 Server / Vista, Linux, Mac OS and more
High video quality; up to 2048 x 1536 VGA resolution
Firmware upgradeable via computer's serial port
On Screen Display (OSD) control for easy management
Adjustable auto-scan via OSD control for monitoring multiple computers
Keyboards status restored when switching between computers
LED display for easy status monitoring
Password protection with auto timeout logout
Auto-detect bank number when daisy-chaining
Built-in daisy-chain port for cascading up to 8 levels (64 computers)
Beeping sound for port switching confirmation (enable/disable)
Plug & play and hot-pluggable
Standard 19” (1U) rack mount design
