Out Of Stock
SKU
TRENDNET-81A
Out of stock

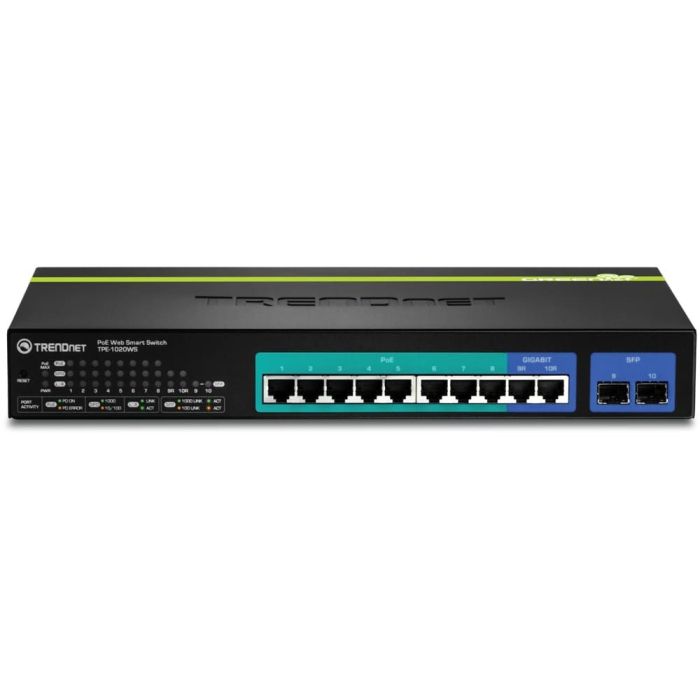

TRENDNET TPE-1020WS 10-PORT GIGABIT WEB SMART POE + SWITCH
TRENDnet's 10-Port Gigabit Web Smart PoE+ Switch, model TPE-1020WS, delivers a 20 Gbps switching capacity with eight PoE+ Gigabit ports and two Gigabit Ethernet uplink ports shared with two SFP slots. This IPv6 ready switch offers advanced traffic management, troubleshooting, security, energy saving GREENnet, and monitoring features at a reduced cost.
BND 425.00
- 8 x PoE+ Gigabit ports
- 2 x Gigabit Ethernet ports and 2 x shared SFP slots
- Up to 30 Watts per port with a 75 Watts total power budget
- 20 Gbps switching capacity
- Rack mountable
|
Standards |
IEEE 802.1d IEEE 802.1p IEEE 802.1Q IEEE 802.1s IEEE 802.1w IEEE 802.1X IEEE 802.1ab IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3z IEEE 802.3ab IEEE 802.3ad IEEE 802.3af IEEE 802.3at IEEE 802.3az |
|
Device Interface |
8 x Gigabit PoE+ ports (ports 1-8) 2 x Gigabit Ethernet ports (ports 9-10) 2 x Shared SFP slots (shared with ports 9-10) LED indicators |
|
Data Transfer Rate |
Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) Gigabit Ethernet: 2000 Mbps (full duplex) |
|
Performance |
Switch fabric: 20 Gbps Ram buffer: 8 Mbits MAC Address Table: 16K entries Jumbo Frames: 10 Kbytes HOL Blocking Prevention Forwarding rates: 14.88 Mppst |
|
Management |
HTTP/HTTPS (SSL v2/3 TLS) Web based GUI SNMP v1, v2c, v3 RMON v1 Static Unicast MAC Address Enable/disable 802.3az Power Saving LLDP Virtual Cable Test IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration |
|
MIB |
MIB II RFC 1213 Bridge MIB RFC 1493 Bridge MIB Extension RFC 2674 SNMPv2 MIB RFC 1907 Ethernet Interface MIB RFC 1643 Ethernet –like MIB RFC 2863 Interface Group MIB RFC2233 MIB Traps Convention RFC 1215 RMON MIB RFC 1757, RFC 2819 802.1p MIB RFC 2674 RADIUS Client Authentication MIB RFC 2618 LLDP-MIB IEEE 802.1ab Ping MIB RFC 2925, RFC 4560 |
|
Spanning Tree |
IEEE 802.1D STP (Spanning Tree protocol) IEEE 802.1w RSTP (Rapid Spanning Tree protocol) IEEE 802.1s MSTP (Multiple Spanning Tree protocol) |
|
Link Aggregation |
Static Link Aggregation 802.3ad Dynamic LACP |
|
Quality of Service (QoS) |
802.1p Class of Service (CoS) DSCP (Differentiated Services Code Point) Bandwidth Control per port Queue Scheduling: Strict Priority, Weighted Round Robin (WRR) |
|
VLAN |
Multiple management VLAN assignment Asymmetric VLAN 802.1Q Tagged VLAN Dynamic GVRP Up to 256 VLAN groups, ID Range 1-4094 Private VLAN (Protected Ports) Voice VLAN (10 user defined OUIs) |
|
Multicast |
IGMP Snooping v1, v2, v3 (per VLAN) Static Multicast Address Up to 256 multicast entries |
|
Port Mirror |
RX, TX, or Both One to one Many to one |
|
Security |
802.1X Port-Based Network Access Control, RADIUS, TACACS+ Local Dial In User Authentication DHCP Snooping (per VLAN) Loopback Detection Duplicated Address Detection Trusted Host Denial of Service (DoS) |
|
ACL IPv4 L2-L4 & IPv6 |
MAC Address VLAN ID Ether Type (IPv4 only) IP Protocol 0-255 TCP/UDP Port 1-65535 802.1p DSCP (IPv4 only) IPv6 Address (IPv6 only) |
|
Compatibility |
Optional Software Utility: Windows® 8.1 (32/64-bit), 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), Windows® 2003/2008 Server (32/64-bit) |
|
Special Features |
PoE+ Fanless design IPv6 802.3az power saving Rack mountable |
|
Power |
Input: 100 - 240 V AC, 50/60 Hz, internal power supply Consumption: 92.3 Watts (Max) PoE budget: 75 Watts |
|
Fan/Acoustics |
Quantity: 0 Noise Level: 0 dB(A) (max.) |
|
MTBF |
545,798 hours |
|
Operating Temperature |
0 – 45 °C (32 - 113 °F) |
|
Operating Humidity |
Max 90% non-condensing |
|
Dimensions |
330 x 183 x 44.45 mm (13 x 7.2 x 1.75 in.) Rack mountable 1U height |
|
Weight |
1.9 kg (4.1 lbs.) |
|
Certifications |
CE FCC |
|
Package Contents |
TPE-1020WS Quick Installation Guide CD-ROM (Utility & User's Guide) Power cord (1.8 m/6 ft.) Rack mount kit |
