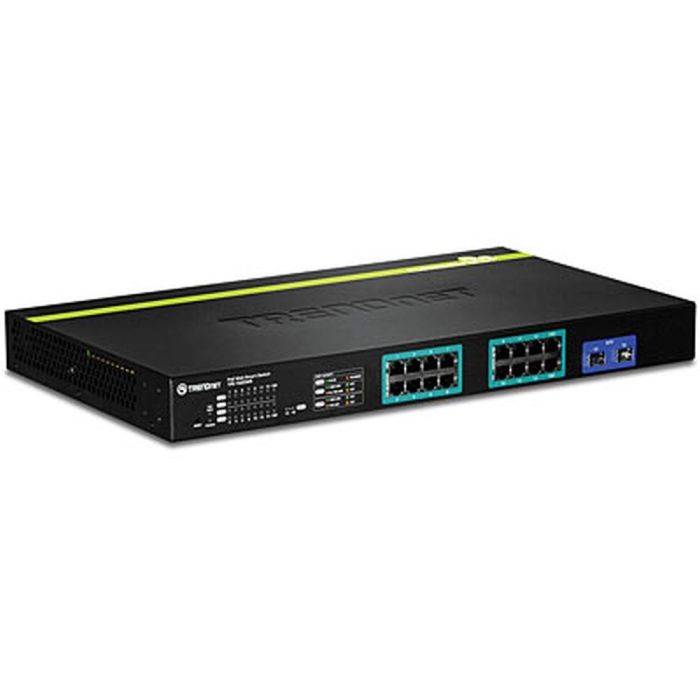

TRENDNET TPE-1620WS 16-PORT GIGABIT WEB SMART POE + SWITCH

Device Interface

·         16 x Gigabit PoE+ ports

·         2 x Shared SFP slots

·         LED indicators

Data Transfer Rate

·         Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)

·         Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)

·         Gigabit Ethernet: 2000 Mbps (full duplex)

Performance

·         Switch fabric: 32 Gbps

·         Ram buffer: 8 Mbits

·         MAC Address Table: 16K entries

·         Jumbo Frames: 10 Kbytes

·         HOL Blocking Prevention

·         Forwarding rates: 23.8 Mpps

Management

·         HTTP/HTTPS (SSL v2/3 TLS) Web based GUI

·         SNMP v1, v2c, v3

·         RMON v1

·         Static Unicast MAC Address

·         Enable/disable 802.3az Power Saving

·         LLDP

·         Virtual Cable Test

·         IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration

MIB

·         MIB II RFC 1213

·         Bridge MIB RFC 1493

·         Bridge MIB Extension RFC 2674

·         SNMPv2 MIB RFC 1907

·         Ethernet Interface MIB RFC 1643

·         Ethernet –like MIB RFC 2863

·         Interface Group MIB RFC2233

·         MIB Traps Convention RFC 1215

·         RMON MIB RFC 1757, RFC 2819

·         802.1p MIB RFC 2674

·         RADIUS Client Authentication MIB RFC 2618

·         LLDP-MIB IEEE 802.1ab

·         Ping MIB RFC 2925, RFC 4560

Spanning Tree

·         IEEE 802.1D STP (Spanning Tree protocol)

·         IEEE 802.1w RSTP (Rapid Spanning Tree protocol)

·         IEEE 802.1s MSTP (Multiple Spanning Tree protocol)

Link Aggregation

·         Static Link Aggregation

·         802.3ad Dynamic LACP

Quality of Service (QoS)

·         802.1p Class of Service (CoS)

·         DSCP (Differentiated Services Code Point)

·         Bandwidth Control per port

·         Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)

VLAN

·         Multiple management VLAN assignment

·         Asymmetric VLAN

·         802.1Q Tagged VLAN

·         Dynamic GVRP

·         Up to 256 VLAN groups, ID Range 1-4094

·         Private VLAN (Protected Ports)

·         Voice VLAN (10 user defined OUIs)

Multicast

·         IGMP Snooping v1, v2, v3 (per VLAN)

·         Static Multicast Address

·         Up to 256 multicast entries

Port Mirror

·         RX, TX, or Both

·         One to one

·         Many to one

Security

·         802.1X Port-Based Network Access Control , RADIUS, TACACS+

·         Local Dial In User Authentication

·         DHCP Snooping (per VLAN)

·         Loopback Detection

·         Duplicated Address Detection

·         Denial of Service (DoS)

ACL IPv4 L2-L4 & IPv6

·         MAC Address

·         VLAN ID

·         Ether Type (IPv4 only)

·         IP Protocol 0-255

·         TCP/UDP Port 1-65535

·         802.1p

·         DSCP (IPv4 only)

·         IPv6 Address (IPv6 only)

Compatibility

·         Optional Software Utility: Windows® 8.1 (32/64-bit), 8 (32/64-bit), 7 (32/64-bit), Vista (32/64-bit), XP (32/64-bit), Windows® 2003/2008 Server (32/64-bit)

Special Features

·         PoE+

·         IPv6

·         802.3az power saving

·         Rack mountable

Power

·         Input: 100 - 240 V AC, 50/60 Hz, internal power supply

·         Consumption: 198 Watts (Max)

·         PoE budget: 185 Watts

Fan/Acoustics

·         Quantity: 2

·         Noise Level: 54 dB(A) (max.)

MTBF

·         284,529 hours

Operating Temperature

·         0 – 45 °C (32 - 113 °F)

Operating Humidity

·         Max 90% non-condensing

Dimensions

·         440 x 251 x 44.45 mm (17.3 x 9.9 x 1.75 in.)

·         Rack mountable 1U height

Weight

·         3.6 kg (7.9 lbs.)
