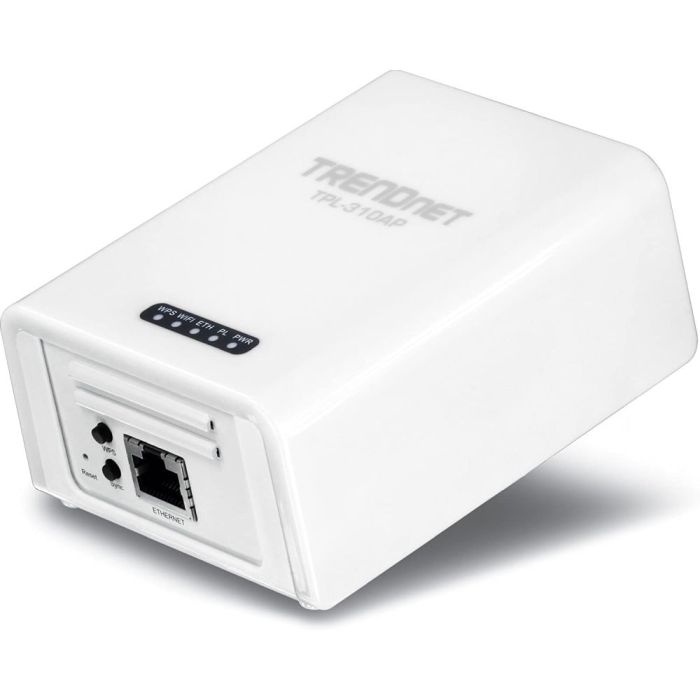

TRENDNET TPL-310AP 200MBPS POWERLINE AV WIRELESS N ACCESS POINT

Standards

·         IEEE 802.3, IEEE 802.3x, IEEE 802.3u, IEEE 802.11n, IEEE 802.11b, IEEE 802.11g, IEEE 802.11s, IEEE 802.1d, HomePlug® AV, IEEE 1901

Interface

·         1 x 10/100Mbps Auto-MDIX RJ-45 Port,

·         Power prong:

·         A: North America Type B (NEMA 5–15)

·         EU: Euro Type C (CEE 7/16)

·         FR: French Type E (CEE 7/5)

Powerline Frequency

·         2 ~ 28 MHz

Modulation

·         OFDM Symbol Modulation on link synchronization, 1024/256/64/8 - QAM, QPSK, BPSK, ROBO Carrier

Protocols

·         TDMA and ,CSMA/CA

Wired Speed

·         Powerline: Up to 200Mbps**

·         Ethernet: Up to 200Mbps (Full Duplex mode)

Utility OS Compatibility

·         Windows 7 (32/64-bit), Vista (32/64-bit), XP(32/64-bit)

Nodes

·         Up to 64 (max.)

·         Recommended: Up to 16* per powerline network

Overlapping Powerline Networks

·         Up to 4 (per electrical system)

Powerline Coverage

·         Up to 300m (984ft.)

Powerline Security

·         128-bit AES (Advanced Encryption Standard)

LED

·         Power (PWR)

·         Wireless (WLAN)

·         WPS (Wi-Fi Protected Setup)

·         Powerline (PL) Connection

·         Best (Green)

·         Better (Amber)

·         Good (Red)

·         No connection (Off)

·         Ethernet (ETH) Connection

·         Solid

·         Blinking

·         Off

Power Switch

·         On/Off power switch

Buttons

·         Sync, WPS, Reset

Dimension (L x W X H)

·         A: 103 x 81 x 66 mm (4.1 x 3.2 x 2.6 in.)

·         EU/FR: 103 x 81 x 81 mm (4.1 x 3.2 x 3.2 in.)

Weight

·         A: 266 g (9.4 oz)

·         EU/FR: 272 g (9.6 oz)

Power Source

·         100~240V AC, 50~60Hz

Consumption

·         8.4 Watts (max.)

Temperature

·         Operating: 0° ~ 40°C (32° ~ 104°F)

·         Storage: -10° ~ 70°C (14° ~ 158°F)

Humidity

·         Max. 90% (non-condensing)

Certifications

·         CE, FCC, HomePlug® AV
