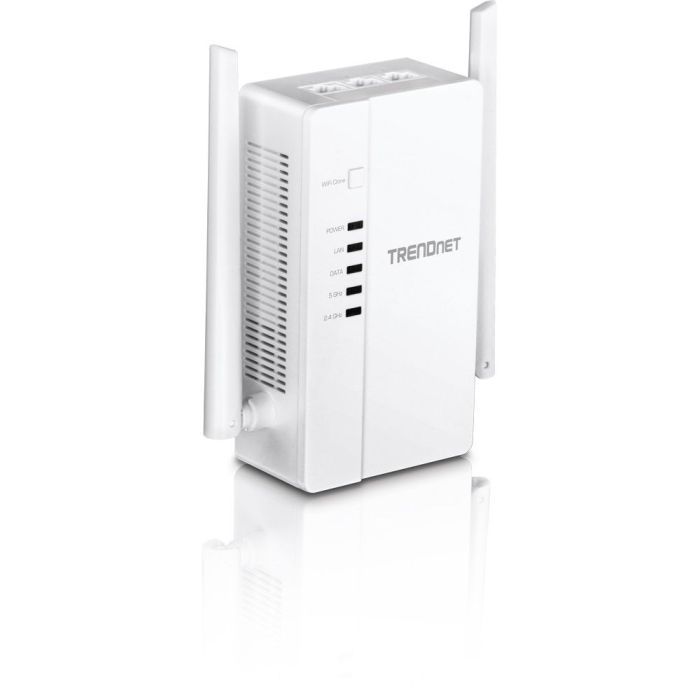

TRENDNET TPL-430AP AC1200 WIFI EVERYWHERE POWERLINE AP
Standards | · IEEE 802.3 · IEEE 802.3u · IEEE 802.3x · IEEE 802.3ab · IEEE 802.11a · IEEE 802.11b · IEEE 802.11g · IEEE 802.11n (up to 300Mbps) · IEEE 802.11ac (up to 866Mbps) · IEEE 1901 |
Device Interface | · 3 x Gigabit LAN ports · WiFi Clone button · Reset button · Sync button · Power switch · LED indicators |
Power plug | · A: North America Type B (NEMA 5–15) · EU: European Type E/F Hybrid (CEE 7/7) · UK : United Kingdom Type G (BS 1363) |
Frequency Band | · 2 - 67MHz |
Modulation/Protocol | · OFDM Symbol Modulation on link synchronization, 4096/1024/256/64/8 - QAM, QPSK, BPSK, ROBO Carrier · CSMA/CA · Powerline: Up to 300m (980ft.) linear distance over electrical power lines*** |
Encryption | · Wireless: WPA2-PSK · Powerline: 128-bit AES (Advanced Encryption Standard) |
Powerline Nodes | · Up to 8 (max.) |
Overlapping Powerline Networks | · Up to 4 (per electrical system) |
Special Features | · Auto-connects to other TRENDnet Powerline adapters · Additional Ethernet ports for wired connectivity · Automatically clones the SSID and password of your WiFi network · IPv6 support · QoS Management · IGMP / MLDv2 Streams |
Antenna Gain | · 2.4GHz: 2 x 3.31dBi · 5GHz: 2 x 4.51dBi |
Wireless Output Power / Receiving Sensitivity | · 802.11a: 16 dBm (typical) / -65 dBm (typical) @ 54Mbps · 802.11b: 20dBm (typical) / -88dBm (typical) @ 11Mbps · 802.11g: 15dBm (typical) / -76dBm (typical) @ 54Mbps · 802.11n (2.4 GHz): 13dBm (typical) / -73dBm (typical) @ 300Mbps · 802.11n (5 GHz): 16dBm (typical) / -70dBm (typical) @ 300Mbps · 802.11ac (5GHz): 15dBm (typical) / -60dBm (typical) @ 866Mbps |
Power | · Input: 100 - 240V AC, 50 - 60Hz, 0.2A · Active mode consumption: 12W (max.) |
Operating Temperature | · 0 - 40°C (32 – 104°F) |
Operating Humidity | · Max. 90% non-condensing |
Certifications | · CE · FCC · IC · UL |
Dimensions | · 255 x 130 x 75mm (10.04 x 5.11 x 2.95in.) |
Weight | · A: 332g (11.7oz.) · EU: 342g (12oz.) · UK: 332g (11.7oz.) |
Package Contents | TPL-430AP Quick Installation Guide Network cable (1.5m / 5 ft.) |
- Powerline 1200 networking over existing electrical lines
- Built-in dual-band wireless AC1200 access point
- Enhanced Powerline performance and range from MIMO with Beamforming technology
- Easy installation – TRENDnet adapters auto-connect out of the box
- Pre-encrypted for your convenience
- Three gigabit ports for high performance wired networking
- Powerline range of up to 300 m (984 ft.) over existing electrical lines
- Two Powerline adapters are required to start a network
- WiFi Clone button copies your existing wireless network settings to the TPL-430AP for faster network integration
