TRENDNET USB-C to VGA HDTV ADAPTER WITH PD SUPPORT (TUC-VGA2)

Standards

·         IEEE 802.3

·         IEEE 802.3u

·         IEEE 802.3x

·         IEEE 802.3ab

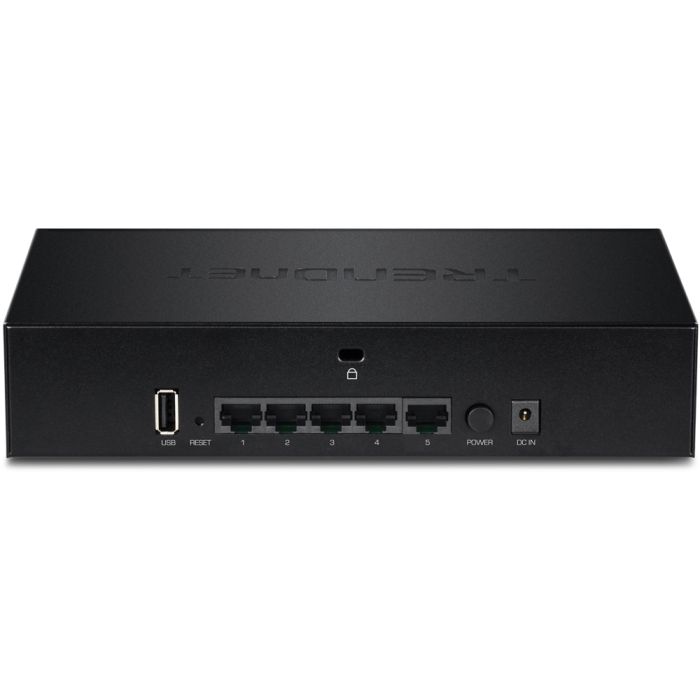

Device Interface

·         5 x Gigabit ports

·         1 x USB port

·         On / Off Power button

·         LED indicators

·         Reset button

Management

·         HTTP Web based GUI

·         Local or online Firmware upgrade

·         Internal log

·         Configuration Backup / Restore

·         NTP

Access Point Management

·         Manage up to 128 access points

·         IP address, gateway, and DNS settings

·         SSID / Network name

·         Wireless channel

·         Wireless encryption: WEP, WPA / WPA2-Personal, WPA / WPA2-Enterprise

·         802.11 mode

·         Channel width

·         Transmit power

·         SSID broadcast

·         Bandwidth control (download limit per SSID & client, upload limit per client)

·         Set RSSI scanning / threshold

·         Seamless WiFi roaming using 802.11r and OKC (opportunistic key caching) protocols

·         802.11k radio resource management

·         Airtime Fairness

·         Band steering

·         Access point / client statistics monitoring

·         Batch firmware upgrade deployment

·         Captive portal

·         Client blacklist

·         802.1Q VLAN

·         Create multiple access point groups for management flexibility

·         Upload custom floor plans using WAP Maps^™

Access Point Compatibility

·         TEW-755AP (Firmware Version: 1.04 or above)

·         TEW-821DAP (Firmware Version: 1.06 or above)

·         TEW-825DAP (Firmware Version: 1.02 or above)

·         TEW-826DAP (Firmware Version: 1.00 or above)

Power

·         Input: 100 – 240 V AC, 50/60 Hz

·         Output: 12 V DC, 1 A external power adapter

·         Consumption: 12 W (max.)

Operating Temperature

·         0 – 40°C (32 – 104°F)

Operating Humidity

·         Max. 90% non-condensing

Dimensions

·         215 x 130 x 44.45 mm (8.27 x 6.3 x 1.73 in.)

·         Rack mountable 1U height

Weight

·         670 g (1.5 lbs.)

Certifications

·         CE

·         FCC

Package Contents

TEW-WLC100

Quick Installation Guide

CD-ROM (User's Guide)

Power adapter (12 V DC, 1 A)

Rack mount kit
